12 63 586 Replacing power distribution module (N55)

Necessary preliminary tasks:

Lever out expanding rivet.

Release locks in direction of arrow.

Feed out fresh-air duct (1) and remove.

Fig 1: Releasing Fresh Air Duct Locks
G08526871Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2).

Release nut beneath it and set positive battery cable aside.

Tightening torque 12 63 1AZ .

Unlock and pull off all connectors from power distribution module (1).

Release lock (3) in direction of arrow.

Feed out and remove power distribution module.

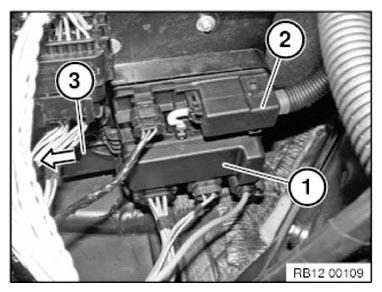

Fig 2: Pulling Off Connectors From Power Distribution Module
G09954775Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.



Necessary preliminary tasks:

Lever out expanding rivet.

Release locks in direction of arrow.

Feed out fresh-air duct (1) and remove.

Fig 1: Releasing Fresh Air Duct Locks
G08526871Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2).

Release nut beneath it and set positive battery cable aside.

Unlock and pull off all connectors from power distribution module (1).

Release lock (3) in direction of arrow.

Feed out and remove power distribution module.

Fig 2: Pulling Off Connectors From Power Distribution Module
G09954775Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
