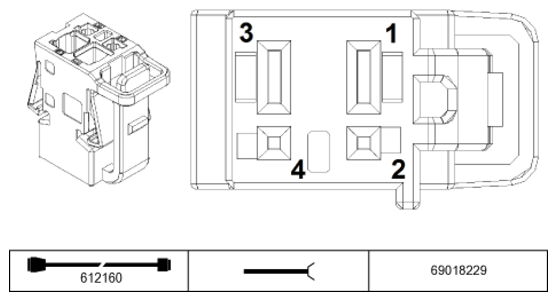

Seat Module, Driver A245*5B Connector End View
Pin Assignments At Plug Connector A245*5B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Activation Driver's seat backrest heating | Driver's seat backrest heating without multifunction seat |
| 1 | E | Ground Driver's seat backrest heating | Driver's seat backrest heating with multifunction seat |
| 2 | -- | Not used | |
| 3 | M | Ground Driver's seat backrest heating | Driver's seat backrest heating without multifunction seat |
| 3 | E | Signal Temperature sensor, left | Driver's seat backrest heating with multifunction seat |
| 4 | A | Activation Driver's seat backrest heating | Driver's seat backrest heating with multifunction seat |
