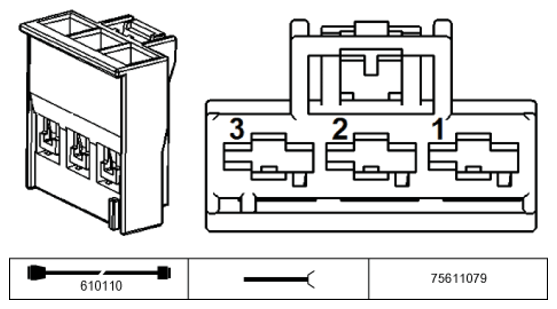

Power Control Unit N7*1B Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector N7*1B
| Pin |
Type |
Description /Signal type |
Connection /Measuring information |
| 1 |
E |
Supply, terminal 30 |
Fuse box |
| 2 |
M |
Ground |
Ground point |
| 3 |
E |
Supply, terminal 30 |
Fuse F506 |
