11 00 Mounting engine on assembly stand (N47 D20 O1)

Special tools required:

• 00 2 300
• 00 2 320
• 11 8 770

Necessary preliminary work:

• Remove engine. See 11 00 050 REMOVE AND INSTALL ENGINE (N47 D20 01 F25) .
• Remove engine support arm on left and right. See 22 11 110 REPLACING LEFT ENGINE SUPPORT ARM (N47) and 22 11 100 REPLACING RIGHT ENGINE SUPPORT ARM (N47) .

Prepare special tool 00 2 300 together with the special tool 00 2 320 .

Fig 1: Removing Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.

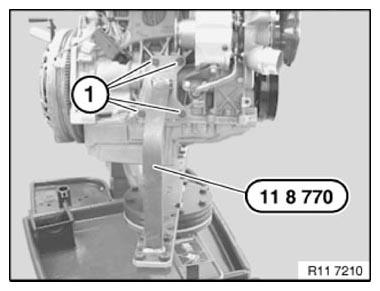

Secure special tool 11 8 770 on left to support on engine support arm with screws (1).

Fig 2: Securing Special Tool 11 8 770 On Left To Support On Engine Support Arm With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

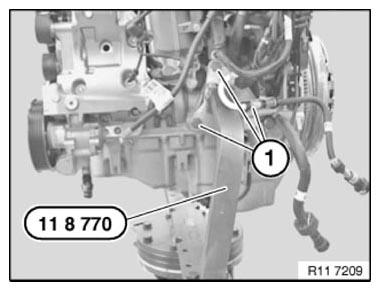

Secure special tool 11 8 770 on right to support on engine support arm with screws (1).

Fig 3: Securing Special Tool 11 8 770 On Right To Support On Engine Support Arm With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
