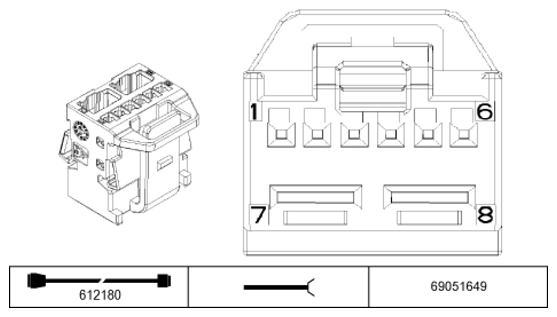

Seat Module, Driver A245*3B Connector End View
Pin Assignments At Plug Connector A245*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | E/A | LIN bus signal | Bus connection |
| 5 | E/A | Body CAN bus signal | Bus connection |
| 6 | E/A | Body CAN bus signal | Bus connection |
| 7 | E | Power supply, terminal 30B | Fuse F67 |
| 8 | M | Ground | Ground connector |
