Removing Starter Motor

Prerequisite

Battery ground lead is disconnected.

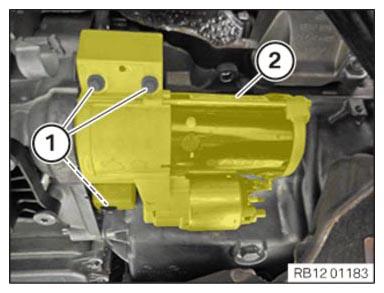

Loosen screws (1).
Remove the starter motor (2).

G14619336

Courtesy of BMW OF NORTH AMERICA, INC.
