Remove Both Timing Chains

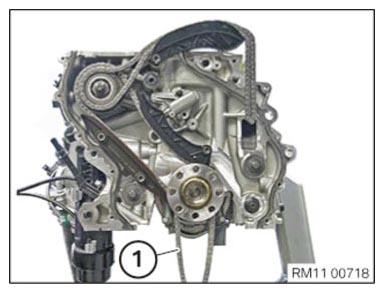

Remove the drive chain (1).

Courtesy of BMW OF NORTH AMERICA, INC.

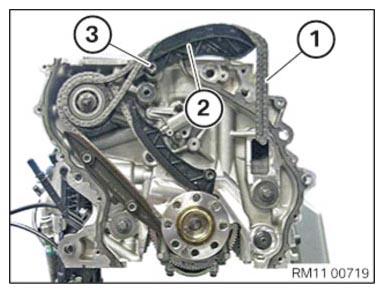

Remove the timing chain (1).
Remove the tensioning rail (2) from the bearing journal (3).
NOTE: Do not disassemble the bearing journal (3).

Courtesy of BMW OF NORTH AMERICA, INC.

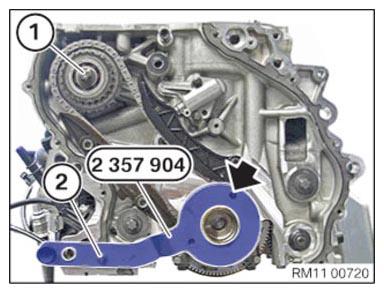

Position the special tool 2 357 904 on the guide pin (arrow) of the crankshaft and secure it with the bolt (2) on the crankcase.
Slacken the screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

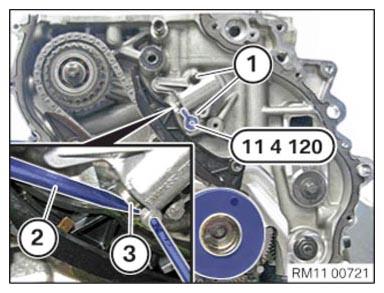

Carefully press in the chain tensioner piston (3) to the stop using a screwdriver (2) and secure with the special tool 0 491 012 (11 4 120).
Unscrew the bolts (1) and carefully remove the chain tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

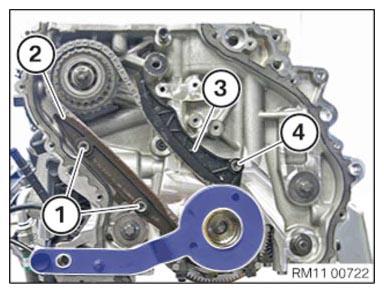

Loosen both bearing journals (1).
Remove the guide rail (2).
Loosen the bearing journals (4).
Remove the tensioning rail (3).

Courtesy of BMW OF NORTH AMERICA, INC.

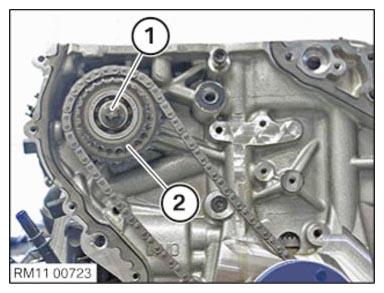

Loosen screw (1) and remove the camshaft sprocket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

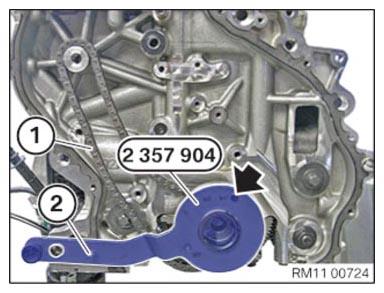

Unscrew the bolt (2) and remove the special tool 2 357 904.
Remove the timing chain (1).

Courtesy of BMW OF NORTH AMERICA, INC.
