Installing The Coolant Line Of The Air Conditioning Compressor

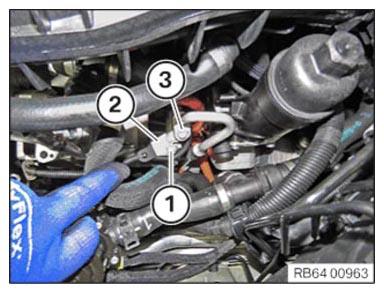

• Position the holder (2) and tighten the bolt (1).
• Position the refrigerant line and tighten the bolt (3).
  TIGHTENING TORQUE SPECIFICATION



  Refrigerant line on air conditioning compressor
  M8 Replace screw.	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

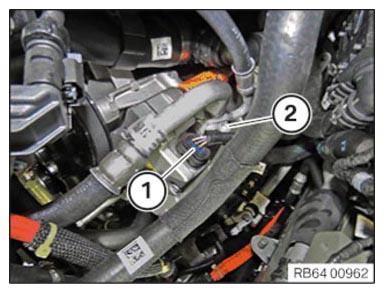

• Position the refrigerant line and tighten the bolt (2).
  TIGHTENING TORQUE SPECIFICATION



  Refrigerant line on air conditioning compressor
  M8 Replace screw.	Tightening torque	19 Nm

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
