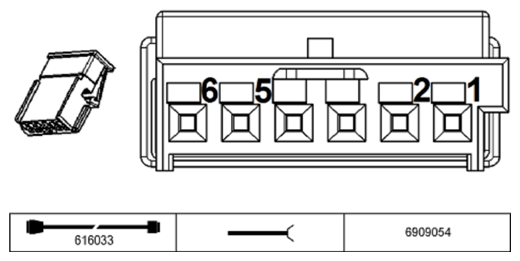

Electronic Night Vision Module A80*4B Connector End View
Pin Assignments At Plug Connector A80*4B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Supply, terminal 15 | Fuse F124 |
| 2 | M | Ground | Ground point |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | M | not headunit basis with video switch Shielding | Head unit |
| 4 | M | headunit basis with video switch Shielding | Video switch |
| 5 | A | headunit basis with video switch Video signal | Video switch |
| 5 | A | not headunit basis with video switch Video signal | Head unit |
| 6 | A | headunit basis with video switch Video signal | Video switch |
| 6 | A | not headunit basis with video switch Video signal | Head unit |
