11 00 050 Removing and installing engine (N55)

Special tools required:

11 0 000
11 7 310
11 8 680
13 5 281
13 5 282

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY LEAD .
Move ENGINE COMPARTMENT LID into service position.
Remove INTAKE PLENUM .
Remove cowl panel COVER .
Remove CLEAN AIR PIPE .
REMOVE LEFT CHARGE AIR DUCT .
Remove right CHARGE-AIR DUCT .
Remove EXPANSION TANK .
Remove THERMOSTAT .
Remove rear ignition coil cover.
Remove AIR CONDITIONING COMPRESSOR .
Remove the CATALYTIC CONVERTER .
Remove transmission . See 24 00 033 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA8HP45Z) N55 , 24 00 033 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA8HP45Z) N55 AWD or 23 00 028 REMOVING AND INSTALLING TRANSMISSION (GS6-45BZ) N55 .
Remove front output shaft (all-wheel drive vehicles only).
Remove RADIATOR .
Detach all coolant hoses from engine.
Detach vacuum line from brake booster.

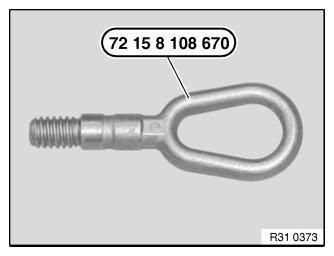

To remove or install the engine, the towing hook 72 15 8 108 670 is required.

Fig 1: Towing Hook (72 15 8 108 670)

Courtesy of BMW OF NORTH AMERICA, INC.

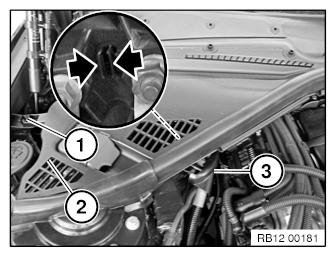

Pull off rubber mount (1) and slightly raise service cover (2) until lock of cover (3) is accessible.

Unlock lock and remove cover (3).

Fig 2: Cover Lock

Courtesy of BMW OF NORTH AMERICA, INC.

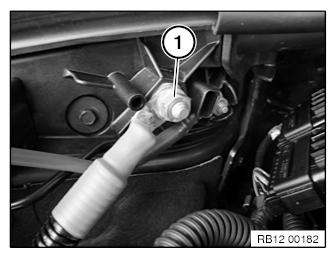

Slacken nut (1).

Tightening torque: 12 42 3AZ .

Remove positive battery cable from battery positive terminal.

Fig 3: Nut

Courtesy of BMW OF NORTH AMERICA, INC.

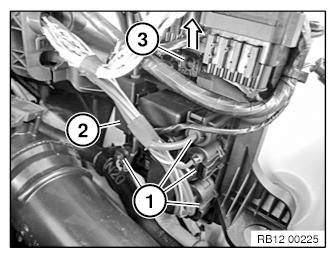

Unlock and pull off all connectors (1) from power distribution module.

Remove cover (2).

Release nut beneath it and set positive battery cable aside.

Tightening torque: 12 52 7AZ .

Release lock (3) in direction of arrow.

Feed out and remove power distribution module.

Fig 4: Releasing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

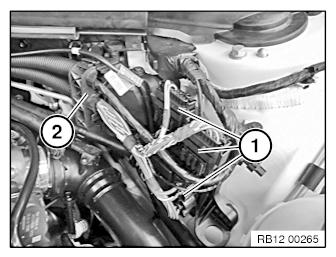

Unlock and pull off the connector (1) from the power distribution module and cable holders.

Release the clamp (2) and expose the wiring harnesses.

Fig 5: Power Distribution Module Connector And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Hot-climate version

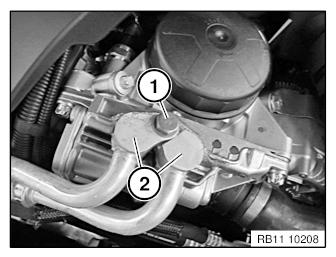

Release screw (1).
Remove oil pipes (2) from oil filter unit.
Release oil lines on cylinder head cover.

Fig 6: Oil Filter Unit Oil Pipes And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

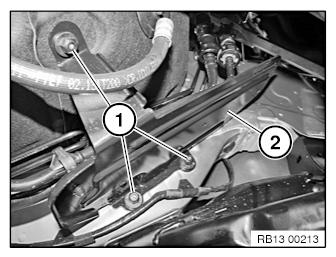

Unscrew nuts (1).

Remove power protective plate (2).

Release fuel lines from protective plate.

Fig 7: Power Protective Plate And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

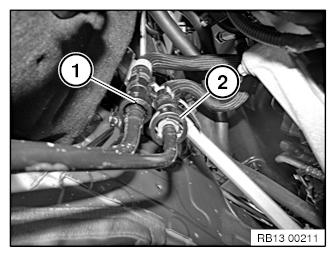

Unlock and disconnect fuel tank ventilation line (1).

Unlock and disconnect fuel delivery line (2).

Fig 8: Fuel Tank Ventilation And Delivery Line

Courtesy of BMW OF NORTH AMERICA, INC.

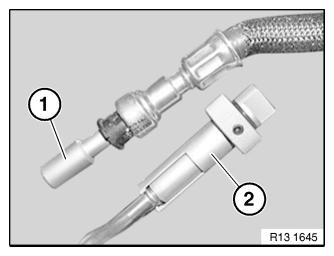

Close off fuel line (3) with special tool 13 5 281.

Close off fuel line (2) with special tool 13 5 282.

Fig 9: Fuel Lines

Courtesy of BMW OF NORTH AMERICA, INC.

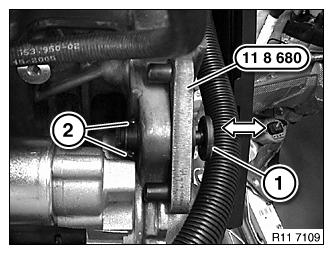

Attach special tool 11 8 680 to rear lifting eye (gearbox side).

Push ball lock pin (1) in direction of arrow and hold down until special tool 11 8 680X is positioned in lifting eye.

Pull ball lock pin (1) outward in direction of arrow until both balls (2) are pushed outward.

Installation note:

Fig 10: Pushing Ball Lock Pin

Courtesy of BMW OF NORTH AMERICA, INC.

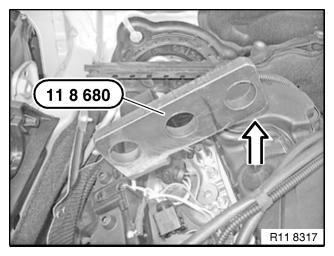

For checking correct mounting of special tool 11 8 680.

There must be a 6.5 mm gap between ball lock pin (1) and ball lock pin housing.

The gap dimension can be checked using a 6.5 mm drill.

Attach special tool 11 0 000 to engine crane.

Suspend special tool 11 0 000 from the designated mounting eyelets of special tool 11 8 680 only (see arrow).

Fig 11: Special Tool (11 8 680)

Courtesy of BMW OF NORTH AMERICA, INC.

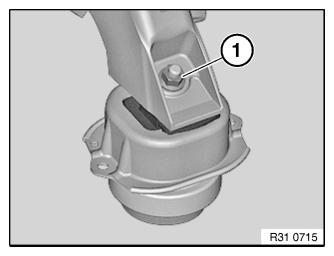

Release nut (1) on engine mount on left and right.

Installation note:

Replace self-locking nuts.

Tightening torque: 22 11 2AZ .

Fig 12: Engine Mount Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Screw towing eye into cylinder head.

Tightening torque: 11 12 5AZ .

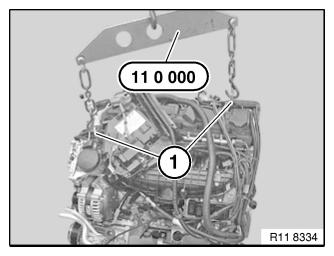

Suspend special tool 11 0 000 from the designated mounting eyelets (1) only.

Lift engine out with engine crane.

Fig 13: Removing Special Tool (11 0 000) From Designated Mounting Eyelets

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME.
