The Integrated Chassis Management system network
The following illustration shows the system network for the driving dynamics control

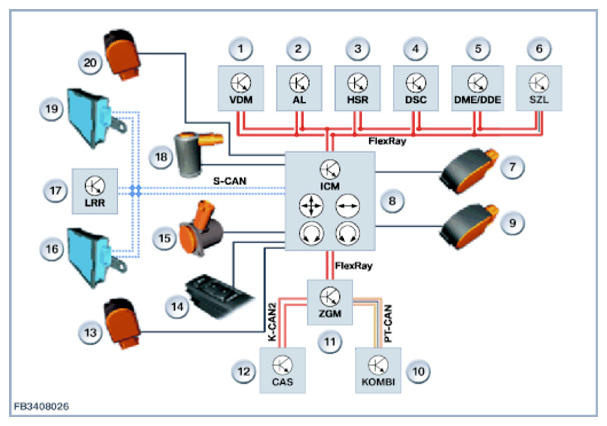

Shown here: with long-range sensor and two short-range sensors
| Item | Explanation |
|---|---|
| 1 | Vertical dynamics management (VDM) |
| 2 | Active Steering (AL) |
| 3 | Rear axle slip angle control (HSR) |
| 4 | Dynamic stability control (DSC) |
| 5 | Digital Engine Electronics or Digital Diesel Electronics (DME or DDE) |
| 6 | Steering column switch center (SZL) |
| 7 | Rear right ride height sensor |
| 8 | Integrated chassis management (ICM) |
| 9 | Rear left ride height sensor |
| 10 | Instrument panel (KOMBI) |
| 11 | Central gateway module (ZGM) |
| 12 | Car access system (CAS) |
| 13 | Front left ride height sensor |
| 14 | Drive dynamics control switch |
| 15 | Servotronic valve (not in conjunction with EPS electromechanical power steering) |
| 16 | Short-range sensor, left |
| 17 | Long-range sensor with long-range sensor (LRR) control unit |
| 18 | ECO valve (not in conjunction with EPS electromechanical power steering) |
| 19 | Short-range sensor, right |
| 20 | Front right ride height sensor |

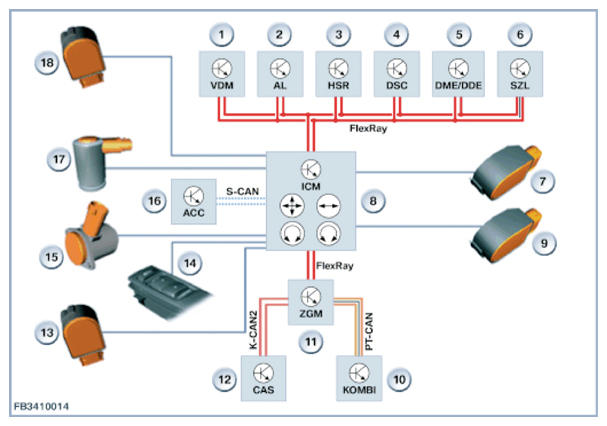

Shown here: New radar sensor and ACC control unit form one component.
| Item | Explanation |
|---|---|
| 1 | Vertical dynamics management (VDM) |
| 2 | Active Steering (AL) |
| 3 | Rear axle slip angle control (HSR) |
| 4 | Dynamic stability control (DSC) |
| 5 | Digital Engine Electronics or Digital Diesel Electronics (DME or DDE) |
| 6 | Steering column switch center (SZL) |
| 7 | Rear right ride height sensor |
| 8 | Integrated chassis management (ICM) |
| 9 | Rear left ride height sensor |
| 10 | Instrument panel (KOMBI) |
| 11 | Central gateway module (ZGM) |
| 12 | Car access system (CAS) |
| 13 | Front left ride height sensor |
| 14 | Drive dynamics control switch |
| 15 | Servotronic valve (not in conjunction with EPS electromechanical power steering) |
| 16 | ACC control unit with ACC sensor |
| 17 | ECO valve (not in conjunction with EPS electromechanical power steering) |
| 18 | Front right ride height sensor |
