Electronic damper control (EDC) (M6): Notes: Overview
Electronic Damper Control is primarily optional equipment (SA223).
Electronic Damper Control is a comfort-oriented suspension control system for controlling the damping forces on individual wheels.
Electronic Damper Control provides the following advantages:
- greater on-road comfort
- enhanced agility of vehicle
- improved self-steering response and response to load reversals
- improved driving safety and shortening of the stopping distance

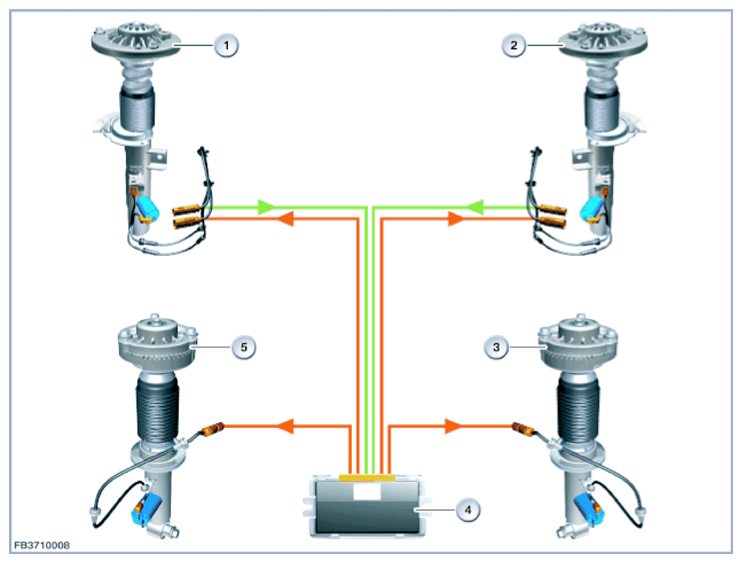

Example F25
| Item | Explanation |
|---|---|
| 1 | Shock absorbers, front left |
| 2 | Shock absorbers, front right |
| 3 | Shock absorbers, rear right |
| 4 | EDC control unit |
| 5 | Shock absorbers, rear left |
