Functional description
A temperature-dependent resistor is used for temperature sensing. The circuit contains a voltage divider where the resistance can be measured depending on the temperature. A temperature is converted using a characteristic curve specific to the sensor. An NTC resistor is installed in the temperature sensor, whose resistance value drops when the temperature increases.

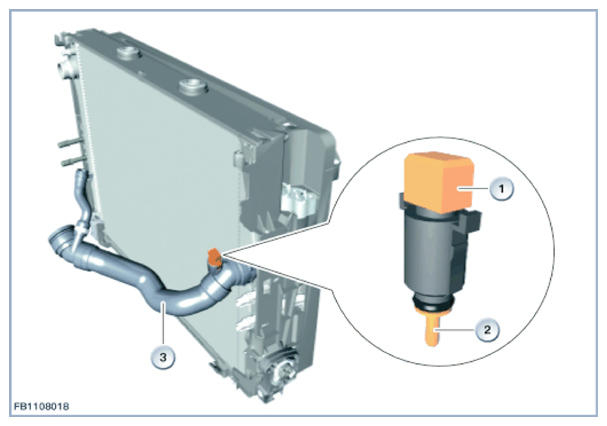

| Item | Explanation |
|---|---|
| 1 | two-pin plug connection |
| 2 | Temperature sensor at radiator outlet |
| 3 | Coolant line radiator outlet |
The resistance changes from 167 kΩ to 150 Ω depending on temperature, which corresponds to a temperature of -40°C to 130°C.
