BDC Body Domain Controller
The front power distribution box supplies the instrument cluster with terminal 30 as well as terminal 30B. The Body Domain Controller (BDC) supplies the instrument cluster with a variety of required signals on the bus system (K-CAN2 > Body Domain Controller > PT-CAN).

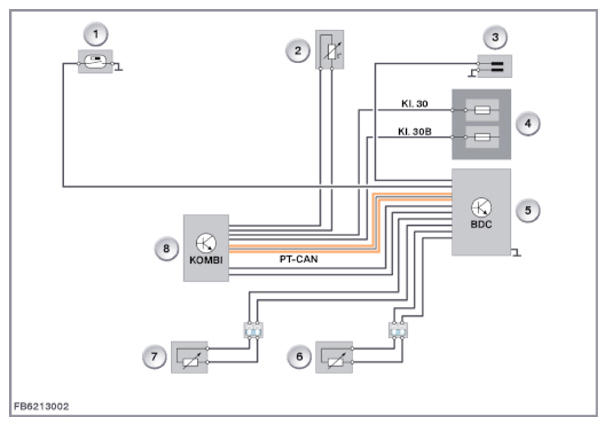

Example F15
| Item | Explanation |
|---|---|
| 1 | Coolant level switch |
| 2 | Outside temperature sensor |
| 3 | Washer fluid level sensor |
| 4 | Front fuse and relay module |
| 5 | Body Domain Controller |
| 6 | Fuel level sensor, right |
| 7 | Fuel level sensor, left |
| 8 | Instrument panel (KOMBI) |
