System functions: Notes

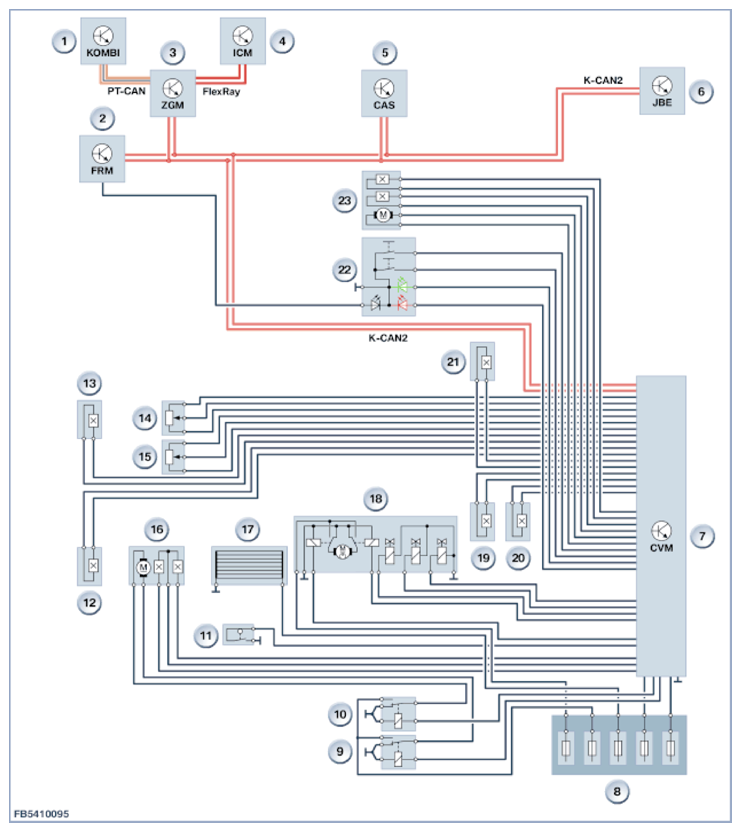

The following illustration shows the soft top system network (this schematic diagram bears no relation to installation space).
| Index | Explanation |
|---|---|
| 1 | Instrument panel (KOMBI) |
| 2 | Footwell module (FRM) |
| 3 | Central gateway module (ZGM) |
| 4 | Integrated chassis management (ICM) |
| 5 | Car access system (CAS) |
| 6 | Junction Box Electronics (JBE) |
| 7 | Convertible top module (CVM) |
| 8 | Power distribution box, rear |
| 9 | Relay for rear-window drive (lower) |
| 10 | Relay 2 for rear-window drive (raise) |
| 11 | Switch, convertible-top compartment floor |
| 12 | Fin sensor extended, left |
| 13 | Soft top compartment lid sensor locked, left |
| 14 | Angle-of-rotation sensor, main pillar |
| 15 | Angle-of-rotation sensor, fin |
| 16 | Rear-window drive |
| 17 | Heated rear window |
| 18 | Soft top drive |
| 19 | Soft top compartment lid sensor, open |
| 20 | Fin sensor extended, right |
| 21 | Soft top compartment lid sensor locked, right |
| 22 | Switch, soft top operation |
| 23 | Drive of cowl panel lock drive |
The following system functions are described for the automatic soft top:
- Opening and closing the soft top
- Convenient operation
- Automatic engine start-stop function
- Check Control messages
