System functions: Notes

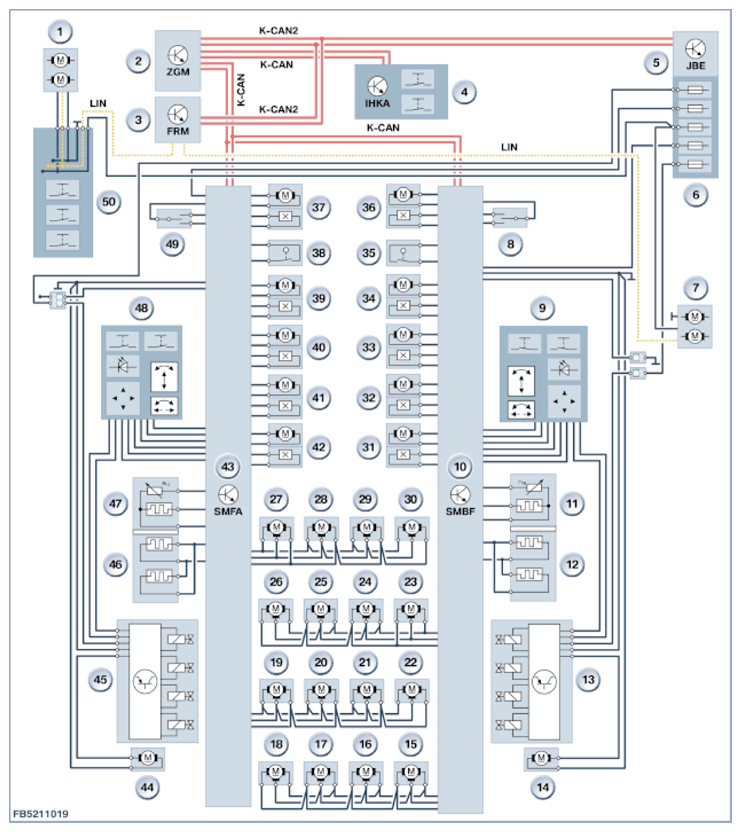

The following illustration shows the system network of the electric seat using the example F12 with sports seat without the equipment specification active seat (schematic diagram bears no relation to installation space).
| Item | Explanation |
|---|---|
| 1 | Exterior mirror, left |
| 2 | Central gateway module (ZGM) |
| 3 | Footwell module (FRM) |
| 4 | Integrated automatic heating/air conditioning system (IHKA) |
| 5 | Junction Box Electronics (JBE) |
| 6 | Front fuse and relay module |
| 7 | Exterior mirror, right |
| 8 | Switch for easy entry, front passenger |
| 9 | Seat adjustment switch block, passenger's side |
| 10 | Front passenger seat module (SMBF) |
| 11 | Seat surface heating for front passenger, with temperature sensor (element of the passenger seat heating) |
| 12 | Backrest heating for front passenger (element of the passenger seat heating) |
| 13 | Valve block for lumbar support, front passenger, with evaluation electronics |
| 14 | Front passenger's seat lumbar support drive |
| 15 | Fan I in the backrest of the front passenger seat |
| 16 | Fan II in the backrest of the front passenger seat |
| 17 | Fan III in the backrest of the front passenger seat |
| 18 | Fan IV in the backrest of the front passenger seat |
| 19 | Fan I in the backrest of the driver's seat |
| 20 | Fan II in the backrest of the driver's seat |
| 21 | Fan III in the backrest of the driver's seat |
| 22 | Fan IV in the backrest of the driver's seat |
| 23 | Fan III in the seat surface of the front passenger seat |
| 24 | Fan I in the seat surface of the front passenger seat |
| 25 | Fan II in the seat surface of the front passenger seat |
| 26 | Fan IV in the seat surface of the front passenger seat |
| 27 | Fan III in the seat surface of the driver's seat |
| 28 | Fan I in the seat surface of the driver's seat |
| 29 | Fan II in the seat surface of the driver's seat |
| 30 | Fan IV in the seat surface of the driver's seat |
| 31 | Drive unit for head restraint height adjustment, front passenger seat (only basic seat) |
| 32 | Backrest adjustment motor, front passenger seat |
| 33 | Seat height adjustment drive unit, front passenger seat |
| 34 | Drive unit for seat cushion tilt adjustment, front passenger seat |
| 35 | Backrest lock switch, front passenger 36 Forward/back seat adjustment drive unit, front passenger seat |
| 37 | Forward/back seat adjustment drive unit, driver's seat |
| 38 | Backrest lock switch, driver |
| 39 | Drive unit for seat cushion tilt adjustment, driver's seat |
| 40 | Seat height adjustment drive unit, driver's seat |
| 41 | backrest adjustment motor, driver's seat |
| 42 | Drive unit for head restraint height adjustment, driver's seat (only basic seat) |
| 43 | Driver seat module (SMFA) |
| 44 | Driver's seat lumbar support drive |
| 45 | Valve block for lumbar support, driver, with evaluation electronics |
| 46 | Backrest heating for driver (element of the driver's seat heating) |
| 47 | Seat surface heating for driver, with temperature sensor (element of the driver's seat heating) |
| 48 | Seat adjustment switch block, driver's side |
| 49 | Switch for easy entry, driver |
| 50 | Driver's door switch block |

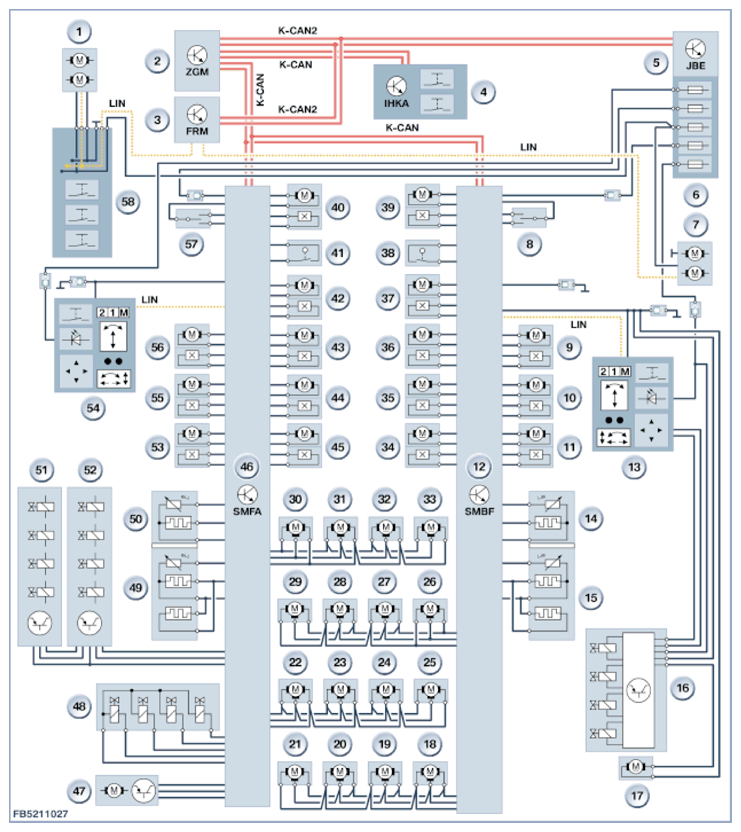

The following illustration shows the system network for the electric seat using the example of the F12 with comfort seat (this schematic diagram bears no relation to installation space). In order to show both equipment specifications (with or without active seat) in one system wiring diagram, the system wiring diagram has the following special features:
- Equipment specification with active seat
This equipment specification is illustrated using the example of the driver's seat module (SMFA).
All button signals are transmitted by the switch block for seat adjustment, driver's side, via the bus connection, to the seat module. The seat module activates the valve block for the lumbar support and the lumbar active-seat drive.
- Equipment specification without active seat
This equipment specification is illustrated using the example of the front passenger seat module (SMBF).
The button signals for the lumbar-support adjustment are not evaluated in the seat module, but by the evaluation electronics in the valve block for the lumbar support. All other button signals are transmitted to the seat module. The evaluation electronics in the valve block activate the lumbar support drive and the valve block for the lumbar support.
| Item | Explanation |
|---|---|
| 1 | Exterior mirror, left |
| 2 | Central gateway module (ZGM) |
| 3 | Footwell module (FRM) |
| 4 | Integrated automatic heating/air conditioning system (IHKA) |
| 5 | Junction Box Electronics (JBE) |
| 6 | Front fuse and relay module |
| 7 | Exterior mirror, right |
| 8 | Switch for easy entry, front passenger |
| 9 | Drive unit for seat depth adjustment, front passenger seat |
| 10 | Backrest upper section adjustment motor, front passenger seat |
| 11 | Drive unit for backrest width adjustment, front passenger seat |
| 12 | Front passenger seat module (SMBF) |
| 13 | Seat adjustment switch block, passenger's side |
| 14 | Seat surface heating for front passenger, with temperature sensor (element of the passenger seat heating) |
| 15 | Backrest heating for front passenger, with temperature sensor (element of the passenger seat heating) |
| 16 | Valve block for lumbar support, front passenger, with evaluation electronics |
| 17 | Front passenger's seat lumbar support drive |
| 18 | Fan I in the backrest of the front passenger seat |
| 19 | Fan II in the backrest of the front passenger seat |
| 20 | Fan III in the backrest of the front passenger seat |
| 21 | Fan IV in the backrest of the front passenger seat |
| 22 | Fan I in the backrest of the driver's seat |
| 23 | Fan II in the backrest of the driver's seat |
| 24 | Fan III in the backrest of the driver's seat |
| 25 | Fan IV in the backrest of the driver's seat |
| 26 | Fan III in the seat surface of the front passenger seat |
| 27 | Fan I in the seat surface of the front passenger seat |
| 28 | Fan II in the seat surface of the front passenger seat |
| 29 | Fan IV in the seat surface of the front passenger seat |
| 30 | Fan III in the seat surface of the driver's seat |
| 31 | Fan I in the seat surface of the driver's seat |
| 32 | Fan II in the seat surface of the driver's seat |
| 33 | Fan IV in the seat surface of the driver's seat |
| 34 | Drive unit for head restraint height adjustment, front passenger seat |
| 35 | Backrest adjustment motor, front passenger seat |
| 36 | Seat height adjustment drive unit, front passenger seat |
| 37 | Drive unit for seat cushion tilt adjustment, front passenger seat |
| 38 | Backrest lock switch, front passenger |
| 39 | Forward/back seat adjustment drive unit, front passenger seat |
| 40 | Forward/back seat adjustment drive unit, driver's seat |
| 41 | Backrest lock switch, driver |
| 42 | Drive unit for seat cushion tilt adjustment, driver's seat |
| 43 | Seat height adjustment drive unit, driver's seat |
| 44 | backrest adjustment motor, driver's seat |
| 45 | Drive unit for head restraint height adjustment, driver's seat |
| 46 | Driver seat module (SMFA) |
| 47 | Lumbar active-seat drive, driver |
| 48 | Valve block for lumbar support, driver |
| 49 | Backrest heating for driver, with temperature sensor (element of the driver's seat heating) |
| 50 | Seat surface heating for driver, with temperature sensor (element of the driver's seat heating) |
| 51 | Pressure distributor 2, active seat, driver |
| 52 | Pressure distributor, active seat, driver |
| 53 | Drive unit for backrest width adjustment, driver's seat |
| 54 | Seat adjustment switch block, driver's side |
| 55 | Backrest upper section adjustment motor, driver's seat |
| 56 | Drive unit for seat depth adjustment, driver's seat |
| 57 | Switch for easy entry, driver |
| 58 | Driver's door switch block |

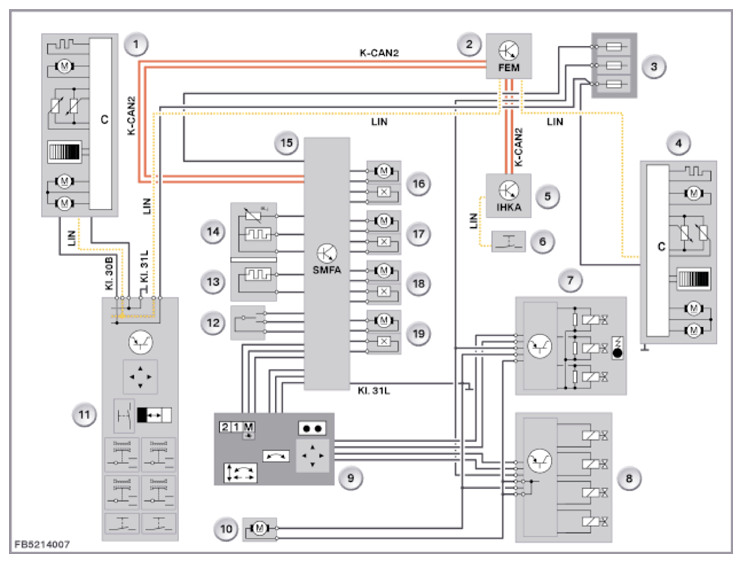

The following illustration shows the electric sports seat (driver's side) with lumbar support and seat heating using the example of the F33.
| Item | Explanation |
|---|---|
| 1 | Exterior mirror, left |
| 2 | Front Electronic Module (FEM) |
| 3 | Front fuse and relay module |
| 4 | Exterior mirror, right |
| 5 | Integrated automatic heating/air conditioning system (IHKA) |
| 6 | Buttons in the control panel of the integrated automatic heating and air-conditioning system |
| 7 | Valve block for backrest width adjustment |
| 8 | Valve block for lumbar support |
| 9 | Seat adjustment switch block, driver's side |
| 10 | Lumbar support drive and/or drive of backrest width adjustment |
| 11 | Driver's door switch block |
| 12 | Switch for easy entry, driver |
| 13 | Backrest heating |
| 14 | Seat surface heating for driver, with temperature sensor (element of the driver's seat heating) |
| 15 | Driver seat module (SMFA) |
| 16 | Electric motor for forward/back seat adjustment |
| 17 | Electric motor for seat angle adjustment |
| 18 | Electric motor for seat height adjustment |
| 19 | Electric motor for backrest angle adjustment |
The following system functions are described for the electric seat:
- Seat adjustment
- Easy access in rear compartment
- Monitoring of the backrest lock
- Seat heating
- Active seat ventilation
- Active seat function
