Electrically adjustable seats: Notes: Overview
The following seat versions are used:
- Basic seat
- Sports seat
- Comfort seat
Depending on the series, seat version and the optional equipment, the following seat functions are possible:
- Forward/back seat adjustment
- Seat height adjustment
- Seat-tilt adjustment
- Seat depth adjustment
- Backrest angle adjustment
- Seat backrest width adjustment
- Backrest upper section adjustment
- Headrest restraint height adjustment
- Lumbar-support adjustment

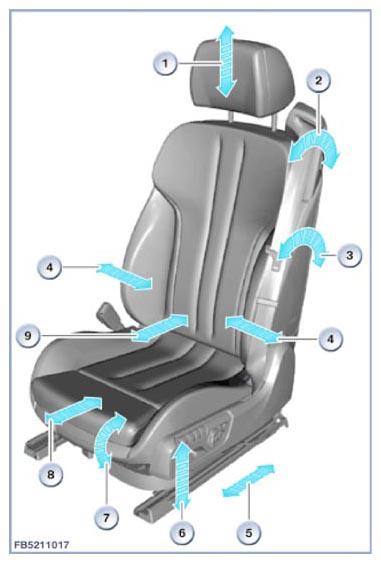

The following illustration shows the seat using the example of the F12.
| Item | Explanation |
|---|---|
| 1 | Headrest restraint height adjustment |
| 2 | Backrest upper section adjustment |
| 3 | Backrest angle adjustment |
| 4 | Seat backrest width adjustment |
| 5 | Horizontal seat adjustment |
| 6 | Seat height adjustment |
| 7 | Seat tilt angle adjustment |
| 8 | Seat depth adjustment |
| 9 | Lumbar-support adjustment |
Depending on the series, the following equipment is available for the various seat versions (series/optional equipment):
- Seat memory
- Seat heating for driver and front passenger
- Lumbar support for driver and front passenger
- Active seat ventilation, front
- Active seat for driver and front passenger
