Functional description: Notes
This section includes descriptions of the following components in the center console control panel:
Drive dynamic control switch and driving experience switch
The driving dynamic control switch is used to operate Dynamic Driving Control.
The new Dynamic Driving Control has the following innovations:
- All of the drive and driving stability control systems installed in the vehicle are activated. The central control unit for this is the Integrated Chassis Management (ICM).
- A number of different programs are available for selection:
- COMFORT
- NORMAL
- SPORT
- SPORT+
An extra mode is available if a driving experience switch is fitted: ECO PRO.
The selected program appears in the instrument cluster's display screen (KOMBI). Individual settings can be selected at the Central Information Display (CID) using the "Options" menu.
Example: F01
| Item | Explanation |
|---|---|
| 1 | Center console operating facility |
| 2 | DTC button |
| 3 | Drive dynamics control switch |
| 4 | Button for bumper camera |
| 5 | PDC button with function indicator light as well as button for reversing camera |
| 6 | 4-pin plug connection |
| 7 | six-pin plug connection |

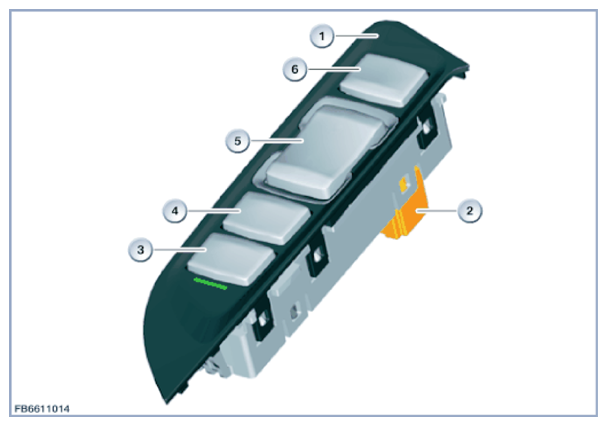

F20 shown
| Item | Explanation |
|---|---|
| 1 | Center console operating facility |
| 2 | 10-pin plug connection |
| 3 | Parking Assist button |
| 4 | Button for bumper camera |
| 5 | Driver experience switch with ECO PRO mode |
| 6 | Button DSC OFF |
The following systems are influenced by Dynamic Driving Control:
- Accelerator pedal module
- Automatic transmission
- Steering
- Vertical dynamics management (VDM) via shock absorbers as well as active roll stabilization
- Dynamic Stability Control
