Structure and inner electrical connection: Notes
The Body Domain Controller (BDC) is connected to the vehicle with
10 plug connections. To avoid confusion during connection, connector housings of the same color have different encoding. This prevents them
being inserted in the wrong position inadvertently.
The input for the voltage supply of the Body Domain Controller (BDC) is a 1-pin plug connection. Dependent on the series, in the fuse block of the Body Domain Controller (BDC) are installed e.g. fuses for the following consumers:
- Central locking drive
- Outside door handle electronics
- Air conditioning, DSC, OBD
- Powertrain of the power window regulators
- Light operating facility, operating facility for the assist systems and steering column switch cluster
- Left headlight driver module and right headlight driver module
- Rain-light-solar-condensation sensor
- Wipers
- Fanfare

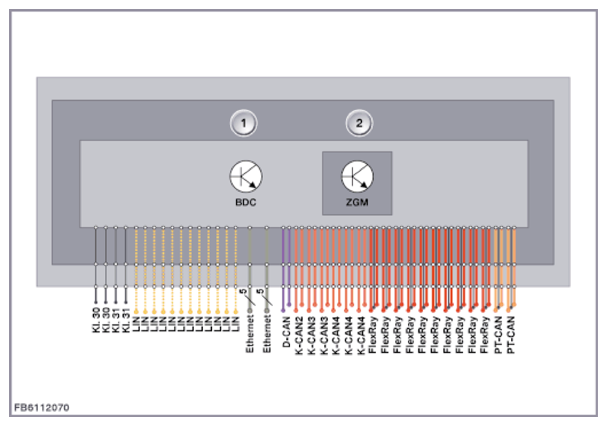

Maximum equipment
| Item | Explanation |
|---|---|
| 1 | Body Domain Controller |
| 2 | Central gateway module (ZGM = virtual control unit) |
