Button, deadlocking on tailgate
When the button for deadlocking is pressed, all doors and the fuel filler flap are locked and centrally deadlocked (Precondition: driver's door is closed).
The Car Access System (CAS) records the button signal of the push-button.
Whenever the tailgate deadlocking button is pressed while the large tailgate is open, the large tailgate is also closed by the automatic actuation of the luggage compartment lid.

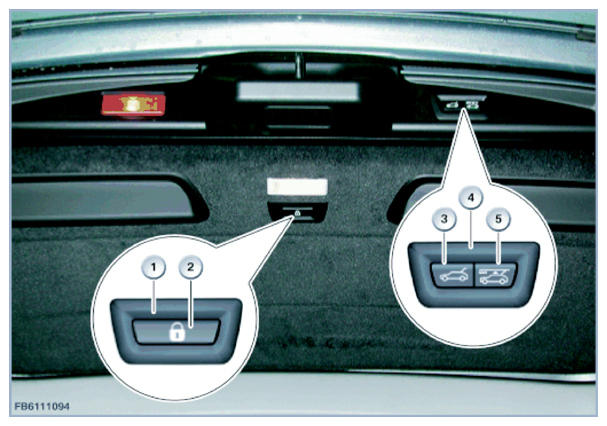

The following illustration shows the button for deadlocking at the tailgate using the example of F07.
| Index | Explanation |
|---|---|
| 1 | Button, deadlocking on tailgate |
| 2 | Button for deadlocking |
| 3 | Tailgate button for closing the tailgate (large tailgate open) |
| 4 | Rear lid button on inside of rear lid |
| 5 | Tailgate button for opening the tailgate further (large tailgate not completely open) |
