Functional networking

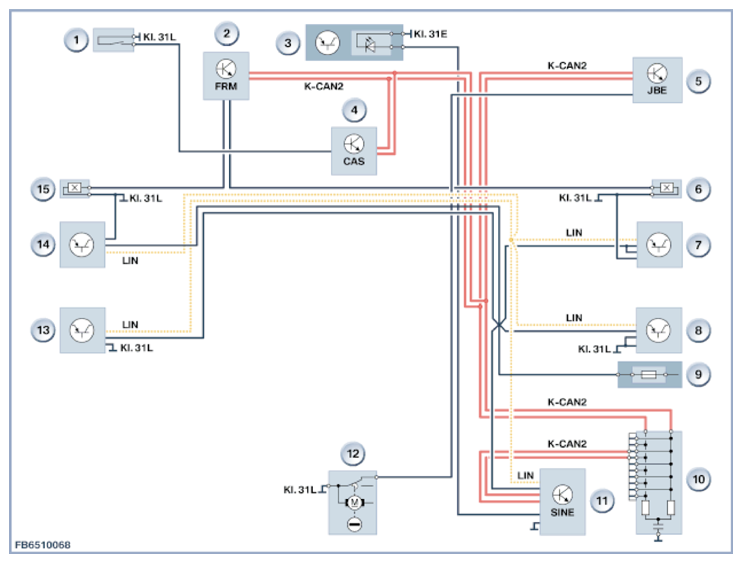

A complex system network with distributed functions residing in additional control units is needed to implement the anti-theft alarm system's functionality. The following illustration shows the functional networking.
| Index | Explanation |
|---|---|
| 1 | Engine compartment lid contact switch |
| 2 | Footwell module (FRM) |
| 3 | DWA lamp on interior rearview mirror |
| 4 | Car Access System (CAS) |
| 5 | Junction Box Electronics (JBE) |
| 6 | Front passenger-door lock |
| 7 | Microwave sensor, passenger's door |
| 8 | Microwave sensor in right side panel |
| 9 | Rear power distribution box |
| 10 | Terminating resistor |
| 11 | Siren with tilt alarm sensor (SINE) |
| 12 | Tailgate lock |
| 13 | Microwave sensor in left side panel |
| 14 | Microwave sensor, driver's door |
| 13 | Driver's door lock |
