Structure and inner electrical connection

When the oil pressure switch is not activated, 12 Volts is applied to this signal line to the engine control system. When the switch is activated, 0 Volts is applied.

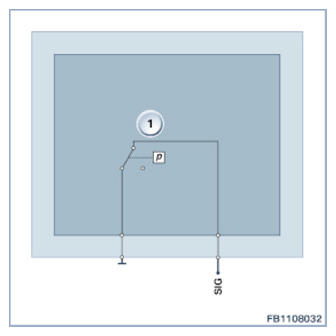

Fig 1: Oil Pressure Switch - Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
