41 00... Stamping Vehicle Identification Number (Needle Stamping Unit)

Read and comply with GENERAL INFORMATION .

The needle stamping system 360 - VRM - BMW is required to stamp the vehicle identification number.

Order number: 81 43 2 155 736

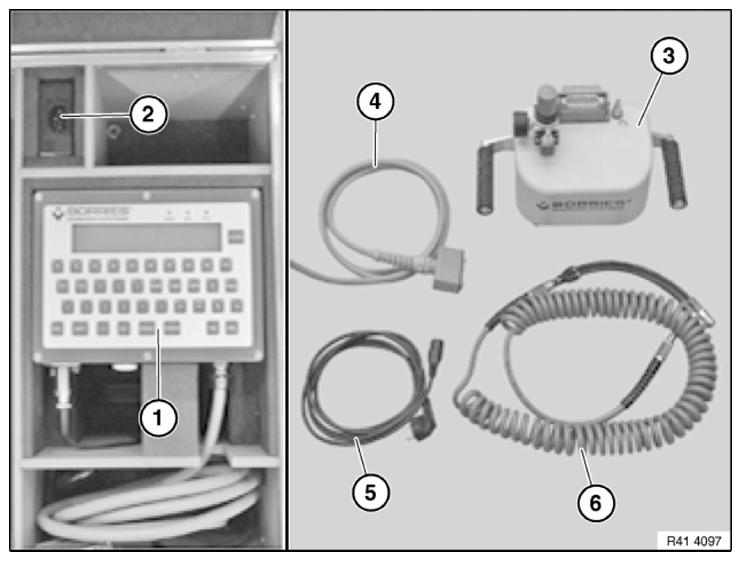

Fig 1: Needle Stamping System 360 Tool Set Components

Courtesy of BMW OF NORTH AMERICA, INC.

The needle stamping system 360 tool set comprises:

(1) Display
(2) Mains adapter
(3) Needle stamping unit
(4) Connecting cable
(5) Power cable
(6) Compressed-air hose

NOTE: A compressed-air connection is also required.

Operating pressure approx. 6 bar
Use only dry, oil-free air

Procedure when stamping a substitute vehicle identification number

Necessary preliminary work:

Remove RIGHT FRONT SIDE PANEL .

Cross through original vehicle identification number.

NOTE: On this vehicle the substitute vehicle identification number is stamped below the original vehicle identification number.
Substitute vehicle identification number = line 1
Original vehicle identification number = line 2

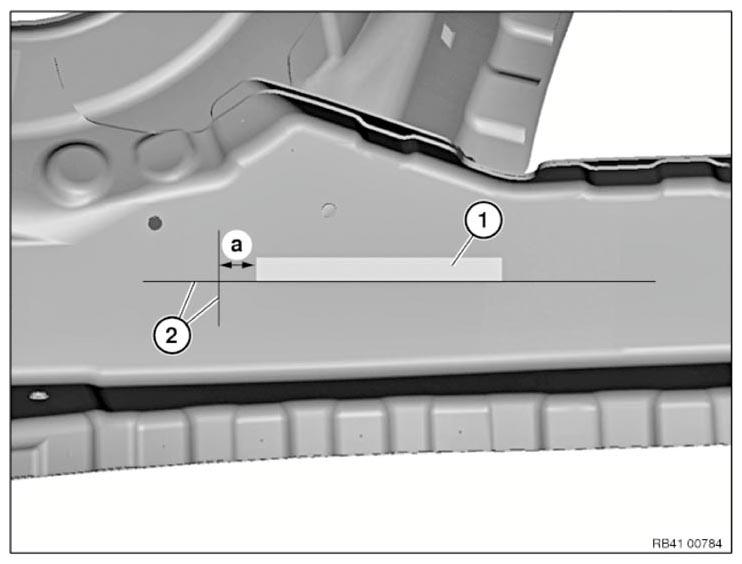

Fig 2: Distance Between Vehicle Identification Number And Position Lines

Courtesy of BMW OF NORTH AMERICA, INC.

(1) = original vehicle identification number (line 2).

Pull off protective film from vehicle identification number.

Mark position lines (2) according to schematic diagram.

Dimension a = 12 mm

Horizontal position line is directly against vehicle identification number.

Display input:

Select Layout 6 with arrow button.
Enter vehicle identification number with F10.
Press "ENTER" button.

NOTE: With Layout 6 the vehicle identification number (line 2) is crossed through.

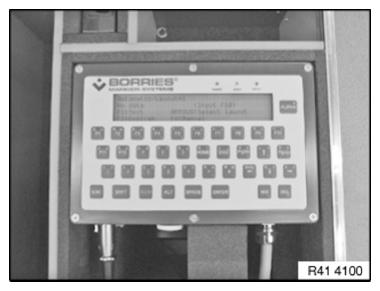

Fig 3: Vehicle Identification Number Machine

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Perform stamping operation with position lines in advance on a test sheet.

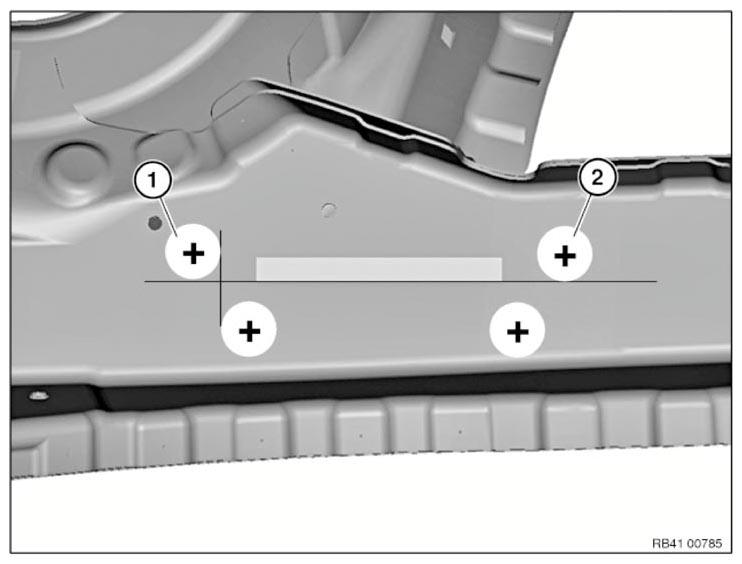

Fig 4: Needle Stamping Unit Positions

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The contact surface for the suction cups of the needle imprint device must be dry and free of dust and grease!

Make sure the unit is resting securely in position. If necessary, adjust the height and position of the suction feet.

Move suction feet of needle stamping unit to positions (1) and (2) shown.

Press pushbutton (1) for vacuum pressure.

Then start stamping operation with pushbutton (2).

Graphic representation similar.

IMPORTANT: After completing the stamping operation, do not alter the position of the unit.
Do not switch off vacuum pressure.

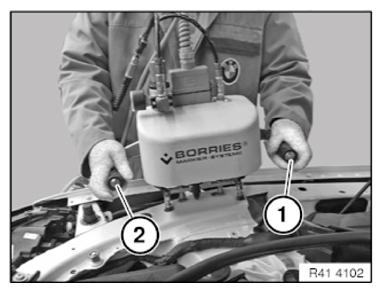

Fig 5: Pressing Vacuum Pressure Pushbutton

Courtesy of BMW OF NORTH AMERICA, INC.

Stamping substitute vehicle identification number

Display input:

Select Layout 1 with arrow button.
Press "ENTER" button.

NOTE: With Layout 1 the already entered substitute vehicle identification number is embossed in line 1.

Fig 6: Vehicle Identification Number Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Start stamping operation with pushbutton (2).

Fig 7: Pressing Vacuum Pressure Pushbutton

Courtesy of BMW OF NORTH AMERICA, INC.

Following layout functions are available:

Layout selection	Vehicle identification number
Layout 1	In line 1
Layout 2	In line 2
Layout 3	Turned through 180° in line 1
Layout 4	Turned through 180° in line 2
Layout 5	Cross through in line 1
Layout 6	Cross through in line 2
