IHKA control unit with integrated control panel
The control panel and control unit together form a single component. The control panel of the IHKA forms a unit with the audio control panel.

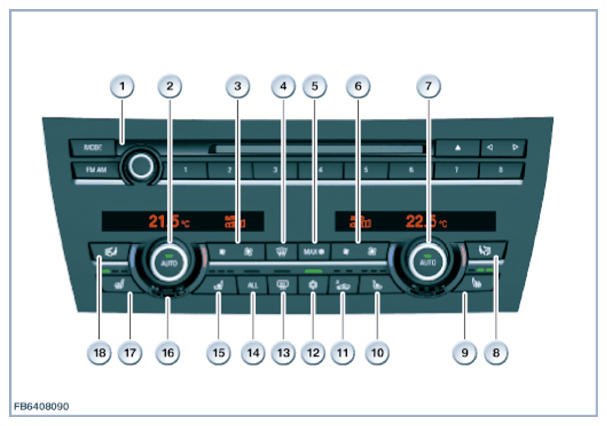

The IHKA is operated using the operating elements shown in the illustration. The nominal temperature is set on the control panel separately for the driver's and front passenger side. The control unit regulates the climate control to the desired temperature. In doing so, the control unit picks up the sensor signals and continuously adapts the control variables for blow-out temperature and blower output. The seat heating and active seat ventilation (if fitted) are also operated using buttons in the control panel.
| Item | Explanation |
|---|---|
| 1 | Audio control panel |
| 2 | Temperature selector control, left, with AUTO button |
| 3 | Fan button, residual-heat button and button for intensity of the AUTO program on left |
| 4 | Defrost button |
| 5 | MAX button (for maximum cooling) |
| 6 | Fan button, residual-heat button and button for intensity of the AUTO program on right |
| 7 | Temperature dial on right with AUTO button |
| 8 | Button for manual air distribution, right |
| 9 | Seat heating button, right |
| 10 | Button for active seat ventilation, right |
| 11 | Button for fresh-air mode/automatic air-recirculation mode (AUC)/air-recirculation mode |
| 12 | A/C button |
| 13 | Heated rear window button |
| 14 | ALL button (current settings on the driver's side are applied to the passenger's side and in the rear, left and right) |
| 15 | Button for active seat ventilation, left |
| 16 | Opening for forced-ventilated interior temperature sensor (as of 07/2012 no longer forced-ventilated) |
| 17 | Seat heating button, left |
| 18 | Button for manual air distribution, left |
