5.3.11. Indicator lamp for front passenger airbag deactivation

In the F10, the indicator lamp for front passenger airbag deactivation is in the roof function center. The indicator lamp for front passenger airbag deactivation if the CIS mat detects a child seat with a child approximately one year old or if the front passenger seat is not occupied.

The brightness of the indicator lamp for front passenger airbag deactivation is controlled by the automatic brightness control of the display illumination.

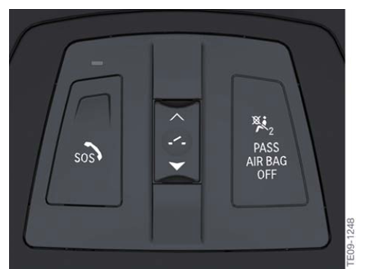

Fig 1: Display Roof Function Center With Indicator Lamp
G06926666Courtesy of BMW OF NORTH AMERICA, INC.
