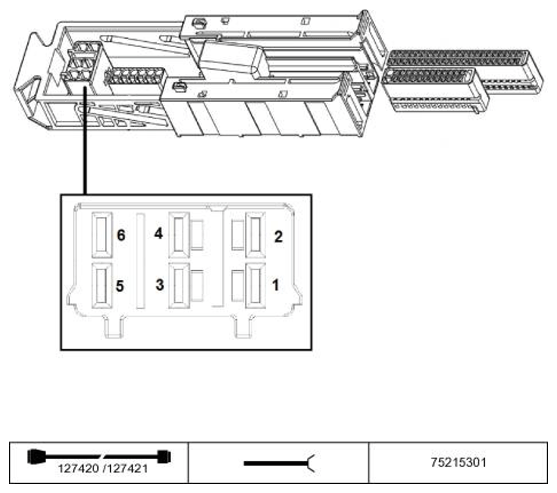

DME Control Module X60003 Connector End View
Pin Assignments At Plug Connector X60003
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30 | Fuse F50 from 03_2007 up to 2007_08 |
| 1 | E | Supply, terminal 30 | Fuse F4 from 2007_09 |
| 1 | E | Supply, terminal 30 | B+ potential distributor up to 03_2007 |
| 2 | E | Supply, terminal 87 | Fuse F78 from 03_2007 up to 2007_08 |
| 2 | E | Supply, terminal 87 | Fuse F37 from 2007_09 |
| 2 | E | Supply, terminal 87 | Fuse F02 up to 03_2007 |
| 3 | E | Supply, terminal 87 | Fuse F78 from 03_2007 up to 2007_08 |
| 3 | E | Supply, terminal 87 | Fuse F02 up to 03_2007 |
| 3 | E | Supply, terminal 87 | from 2007_09 |
| 4 | M | Ground | Ground point |
| 5 | M | Ground | Ground point |
| 6 | M | Ground | Ground point |
