72 11... Removing And Installing/Replacing Seat Belt For 3rd Seat Row On Left Or Right
Necessary preliminary tasks:
- Remove PANEL FOR ROOF PILLAR AT REAR .
- Remove luggage compartment trim panel . See REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) or REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) .
The operation is shown without the capping for improved clarity.

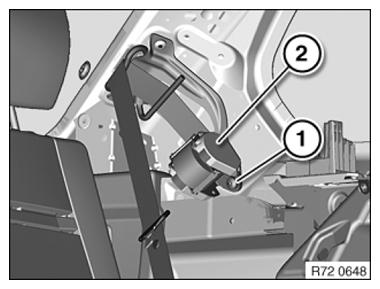

Release screw (1).
Installation:
Replace screws (1).
Tightening torque: 72 11 40AZ .
Remove inertial reel mechanism (2).
Installation:
Inertia reel mechanism (2) is coded against incorrect installation.
