11 37 700 Replacing control unit (Valvetronic)

Switch off ignition.

Disconnect battery.

Observe following instructions before replacing control unit:

Remove right fresh air duct.

Release screw and remove holder (1).

Release screws and remove cover (2) from control unit box.

NOTE: Release screws on seal (3) only when removing wiring harness.

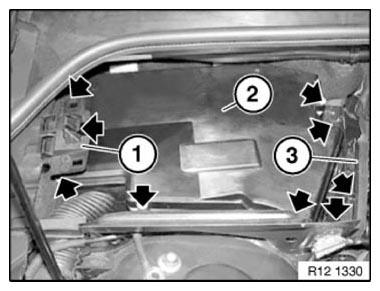

Fig 1: Locating Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert tabs (1) in openings (2) and close cover.

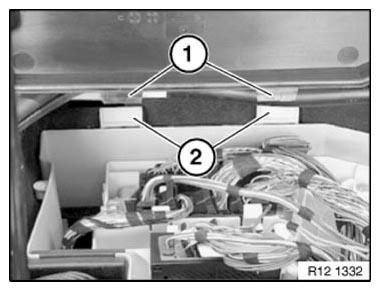

Fig 2: Identifying Tabs In Openings And Close Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach plug connections on Valvetronic control unit (1).

Remove Valvetronic control unit (1).

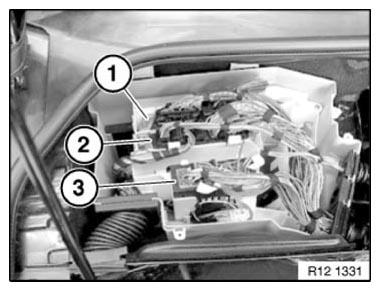

Fig 3: Identifying Valvetronic Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
