Functional description
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
A temperature-dependent electrical resistor is used for temperature sensing. The circuit contains a voltage divider where the resistance can be measured depending on the temperature. A temperature is converted using a characteristic curve specific to the sensor. An NTC resistor (NTC) is installed in the coolant temperature sensor, whose resistance value drops when the temperature increases.

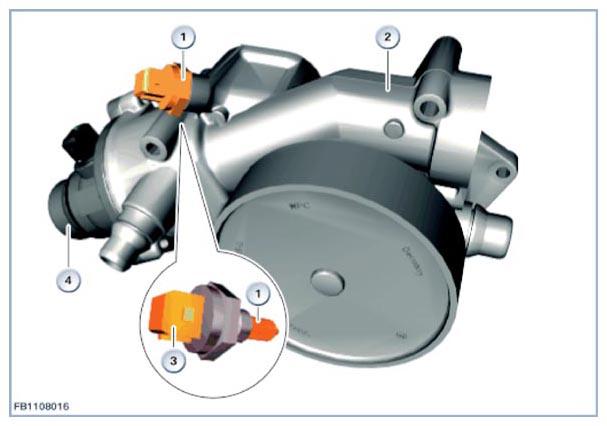

| Index | Explanation |
|---|---|
| 1 | Coolant temperature sensor |
| 2 | Coolant pump |
| 3 | Characteristic map thermostat |
| 4 | two-pin plug connection |
The resistance changes from 167 kΩ to 150 Ω depending on temperature, which corresponds to a temperature of -40 °C to 130 °C.
