99 00... Paintwork (2 and 3 coats)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Follow GENERAL INSTRUCTIONS ON PAINTING .

The following scopes of work are applicable to 2- and 3-coat paintwork.

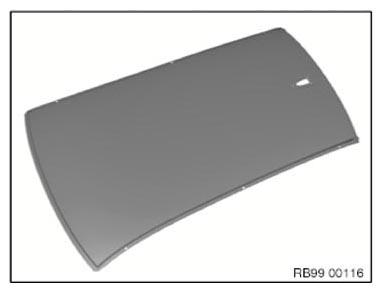

Roof

Area specification applies to all paint stages.

Fig 1: Identifying Roof Paintwork Area

G09950384

Courtesy of BMW OF NORTH AMERICA, INC.

Cover on roof pillar

Area specification applies to all paint stages.

Fig 2: Identifying Roof Pillar Cover Paintwork Area

G08531383

Courtesy of BMW OF NORTH AMERICA, INC.

Trim strip on roof frame

Area specification applies to all paint stages.

Fig 3: Identifying Trim Strip On Roof Frame Paintwork Area

G08531382

Courtesy of BMW OF NORTH AMERICA, INC.

Tail panel

Area specification applies to all paint stages.

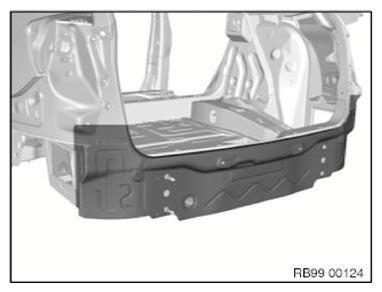

Fig 4: Identifying Tail Panel Paintwork Area

G09950387

Courtesy of BMW OF NORTH AMERICA, INC.

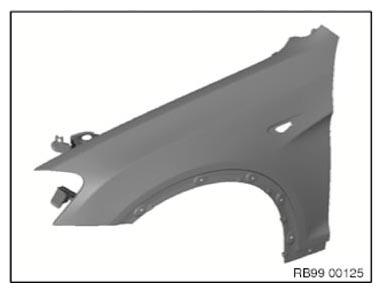

Front side panel

Area specification applies to all paint stages.

Fig 5: Identifying Front Side Panel Paintwork Area

G09950388

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Area specification applies to paint stage 1.

Fig 6: Identifying Front Door Paintwork Area Stage 1

G08531387

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Area specification applies to paint stages 2 and 3.

Fig 7: Identifying Front Door Paintwork Area Stage 2 And 3

G08531388

Courtesy of BMW OF NORTH AMERICA, INC.

Front door

Additional area specification inner panel for paint stages 2 and 3.

Fig 8: Identifying Front Door Inner Panel Paintwork Area Stage 2 And 3

G06897799

Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Area specification applies to paint stage 1.

Fig 9: Identifying Rear Door Paintwork Area Stage 1

G08531390

Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Area specification applies to paint stages 2 and 3.

Fig 10: Identifying Rear Door Paintwork Area Stage 2 And 3

G08531391

Courtesy of BMW OF NORTH AMERICA, INC.

Rear door

Additional area specification inner panel for paint stages 2 and 3.

Fig 11: Identifying Rear Door Inner Panel Paintwork Area Stage 2 And 3

G08531392

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid

Area specification applies to all paint stages.

Additionally complete inner panel for paint stages 2 and 3.

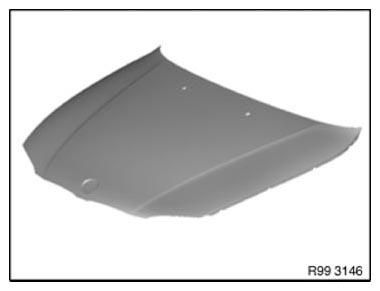

Fig 12: Identifying Engine Compartment Lid Paintwork Area

G09950395

Courtesy of BMW OF NORTH AMERICA, INC.

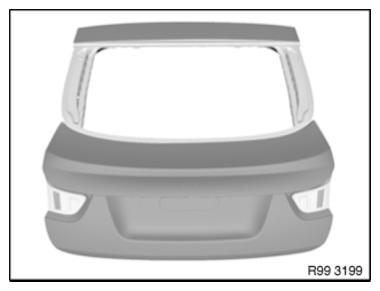

Tailgate

Area specification applies to paint stage 1.

Fig 13: Identifying Tailgate Paintwork Area Stage 1

G08587781

Courtesy of BMW OF NORTH AMERICA, INC.

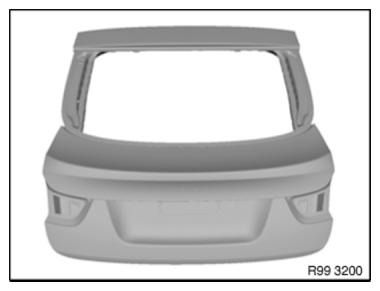

Tailgate

Area specification applies to paint stages 2 and 3.

Fig 14: Identifying Tailgate Paintwork Area Stage 2 And 3

G08587782

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate

Additional area specification inner panel for paint stages 2 and 3.

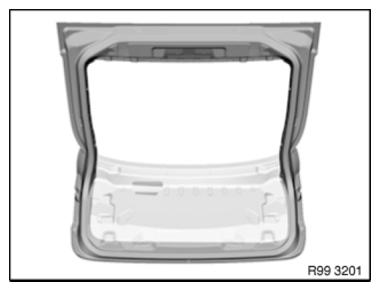

Fig 15: Identifying Tailgate Inner Panel Paintwork Area Stage 2 And 3

G08587783

Courtesy of BMW OF NORTH AMERICA, INC.

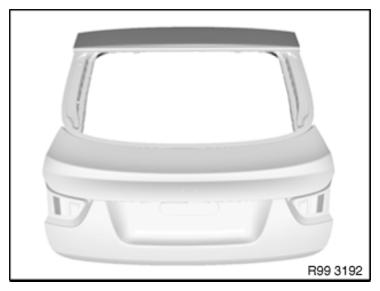

Tailgate, top

Area specification applies to paint stage 1.

Fig 16: Identifying Tailgate (Top) Paintwork Area Stage 1

G08587806

Courtesy of BMW OF NORTH AMERICA, INC.

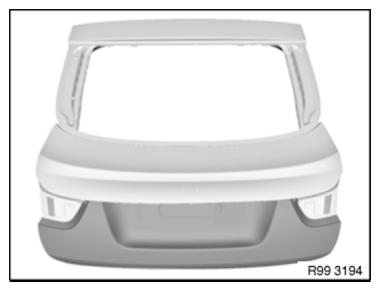

Tailgate, bottom

Area specification applies to paint stage 1.

Fig 17: Identifying Tailgate (Bottom) Paintwork Area Stage 1

G08587808

Courtesy of BMW OF NORTH AMERICA, INC.

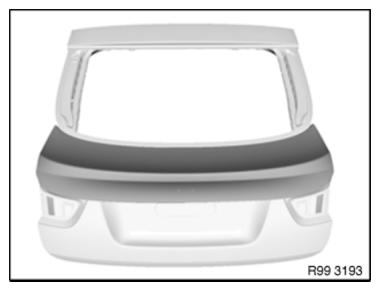

Center tailgate

Area specification applies to paint stage 1.

Fig 18: Identifying Center Tailgate Paintwork Area Stage 1

G08587807

Courtesy of BMW OF NORTH AMERICA, INC.

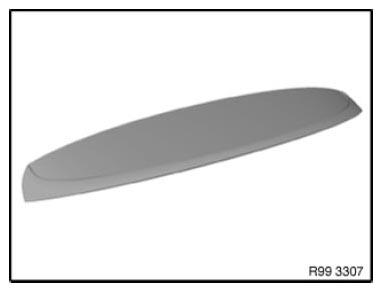

Spoiler for tailgate

Area specification applies to paint stages 1 and 2.

Fig 19: Identifying Spoiler For Tailgate Paintwork Area Stage 1 And 2

G08487967

Courtesy of BMW OF NORTH AMERICA, INC.

Flap for fuel filler neck

Area specification applies to all paint stages.

Additionally with inner plate for paint stages 2 and 3.

Fig 20: Identifying Flap For Fuel Filler Neck Paintwork Area

G06897807

Courtesy of BMW OF NORTH AMERICA, INC.

Trim panel, bumper, front

Area specification applies to all paint stages.

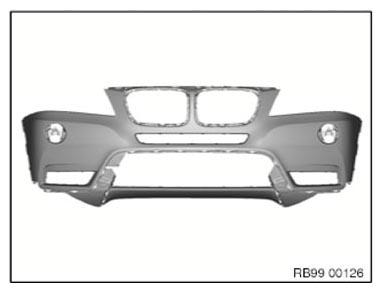

Fig 21: Identifying Trim Panel Paintwork Area (Front Bumper)

G09950404

Courtesy of BMW OF NORTH AMERICA, INC.

Panel, bumper, rear

Area specification applies to all paint stages.

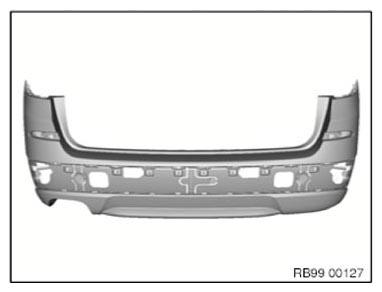

Fig 22: Identifying Rear Bumper Panel Paintwork Area

G09950405

Courtesy of BMW OF NORTH AMERICA, INC.

Center door pillar

Area specification applies to all paint stages.

Fig 23: Identifying Center Door Pillar Paintwork Area

G08531367

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 1.

Fig 24: Identifying Roof Frame (Front) Paintwork Area Stage 1

G06897814

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame, front

Area specification applies to paint stage 3.

Fig 25: Identifying Roof Frame (Front) Paintwork Area Stage 3

G06897815

Courtesy of BMW OF NORTH AMERICA, INC.

Roof frame

Area specification applies to all paint stages.

Fig 26: Identifying Roof Frame Paintwork Area

G08531370

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel (up to roof frame, middle)

Area specification applies to paint stage 1.

Fig 27: Identifying Rear Side Panel Paintwork Area (Up To Roof Frame, Middle) Stage 1

G08531372

Courtesy of BMW OF NORTH AMERICA, INC.

Rear side panel (up to roof frame, middle)

Area specification applies to paint stage 3.

Fig 28: Identifying Rear Side Panel Paintwork Area (Up To Roof Frame, Middle)

G08531373

Courtesy of BMW OF NORTH AMERICA, INC.
