Restraints - Repair -- M3 Coupe
>>
General
>>
72 12... Overview Of Airbag Modules, Airbag Control Unit, Belt Tensioners
72 12... Overview Of Airbag Modules, Airbag Control Unit, Belt Tensioners

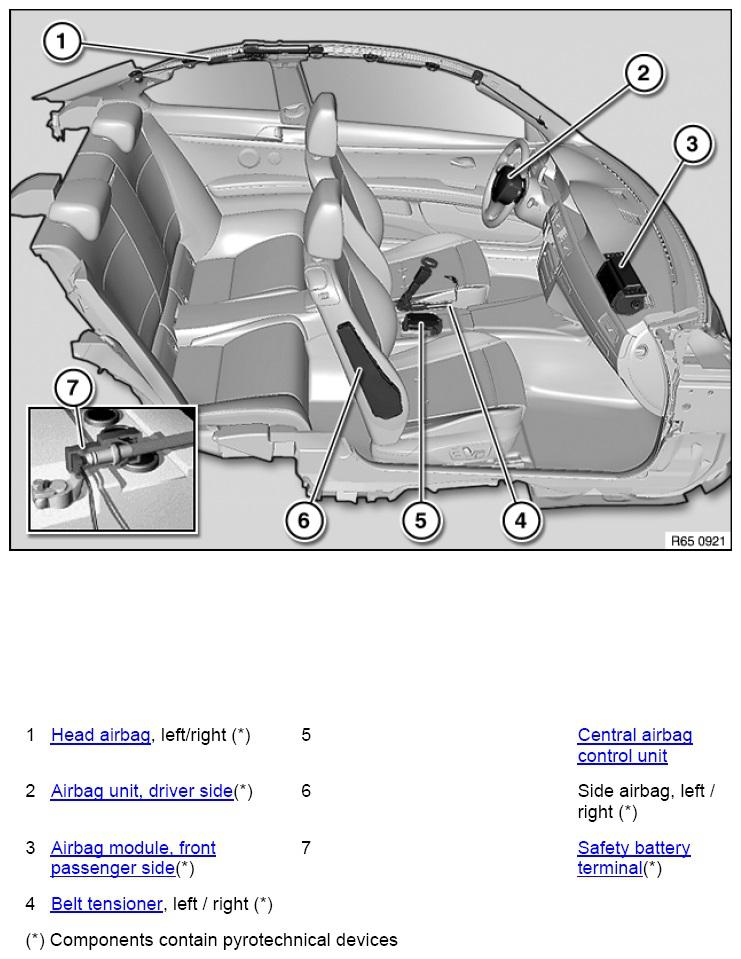

Fig 1: Airbag Modules, Control Unit & Belt Tensioners Locations
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
