32 00... General chassis and suspension definitions

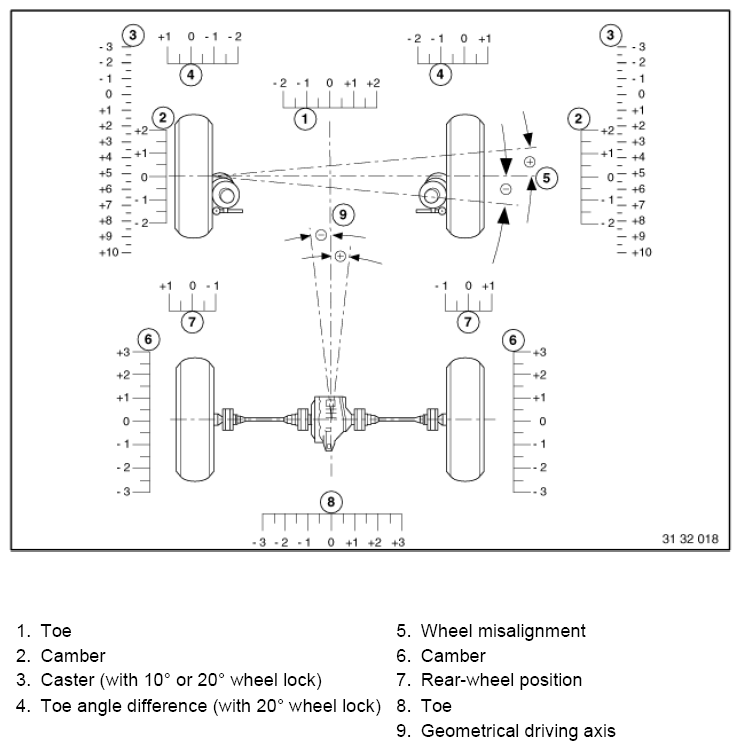

Fig 1: Checking General Chassis And Suspension Related Components Adjustment Dimensions

G09892417

Courtesy of BMW OF NORTH AMERICA, INC.
