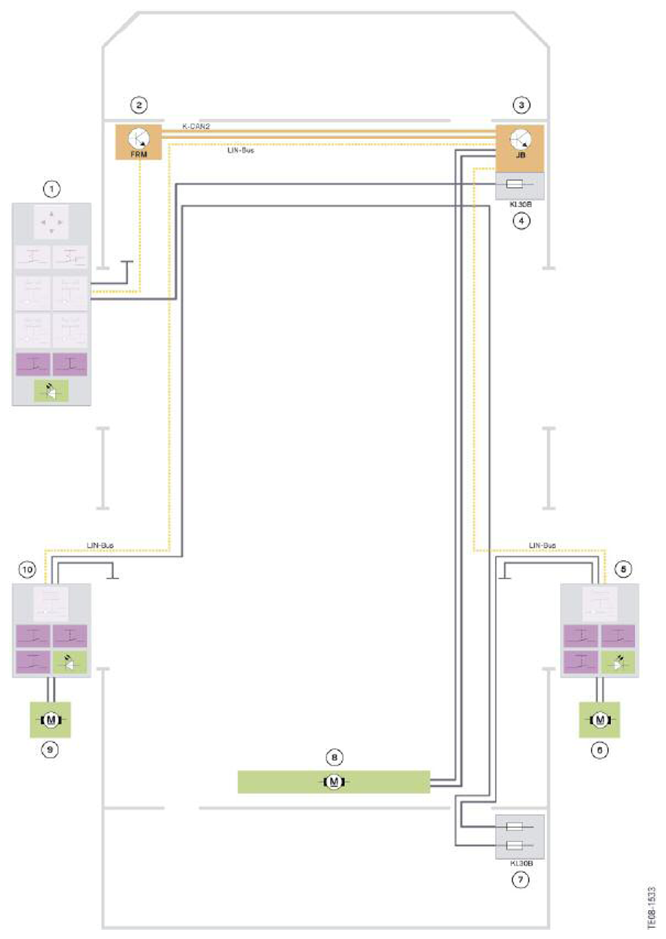

System Circuit Diagram - Roller Sun Blind
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Driver's door switch cluster |
| 2 | Footwell module (FRM) |
| 3 | Junction box electronics (JB) |
| 4 | Front power distribution box |
| 5 | Switch cluster in rear passenger's side door |
| 6 | Motor for roller sun blind, rear passenger's side |
| 7 | Rear power distribution box |
| 8 | Motor for roller sun blind, rear window |
| 9 | Switch cluster in rear driver's side door |
| 10 | Motor for roller sun blind, rear driver's side |
| K-CAN2 | Body-CAN2 |
| LIN-Bus | Local Interconnect Network bus |
| KI. 30B | Terminal 30, basic operation |
