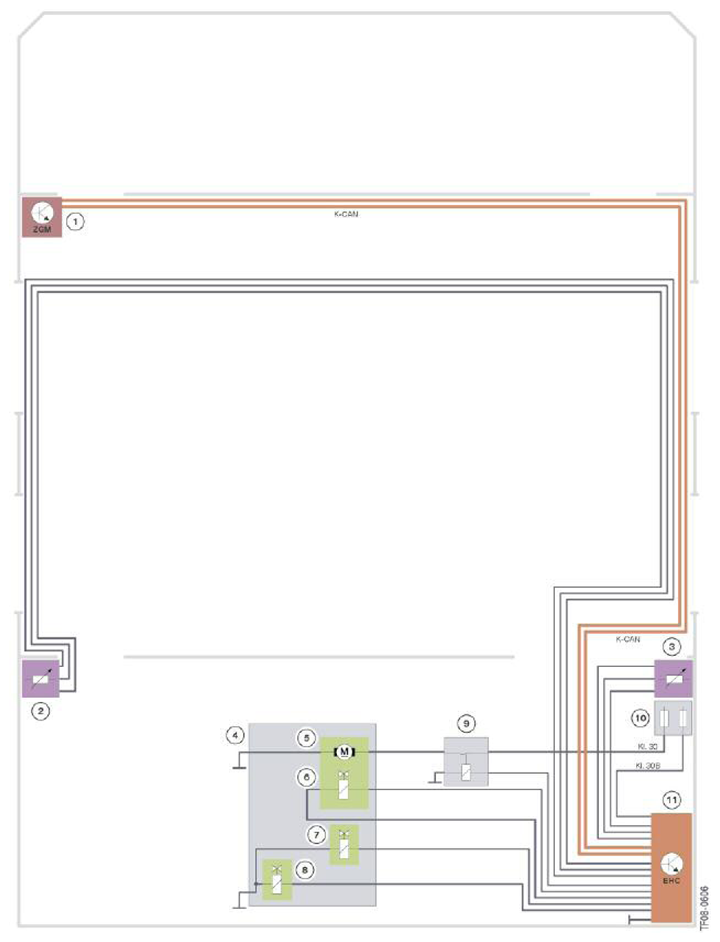

EHC System Diagram
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Central Gateway Module |
| 2 | Ride-height sensor, rear left |
| 3 | Ride-height sensor, rear right |
| 4 | Air supply unit |
| 5 | Compressor unit |
| 6 | Solenoid valve, left side |
| 7 | Solenoid valve, right side |
| 8 | Air exhaust valve |
| 9 | Air supply relay |
| 10 | Rear power distribution box |
| 11 | Electronic ride-height control |
