Oscillating Motor: Notes

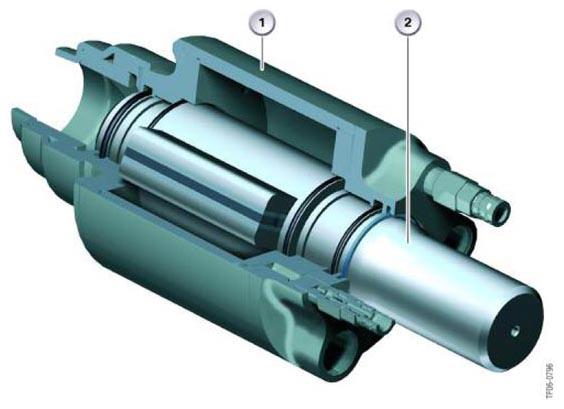

Fig 1: Identifying Oscillating Motor Housing And Oscillating Motor Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

The hydraulic motor and the hydraulic motor body are each attached to one half of the anti-roll bar. The active anti-roll bar consists of the oscillating motor and the anti-roll bar halves fitted to the oscillating motor, with press-fitted roller bearings for their connection to the axle carriers. The use of roller bearings ensures optimum comfort thanks to better response and reduced control forces. A thin coating of grease on the roller bearing does not impair the function of the active anti-roll bar.
