Bus Diagram for Lateral Dynamics Systems

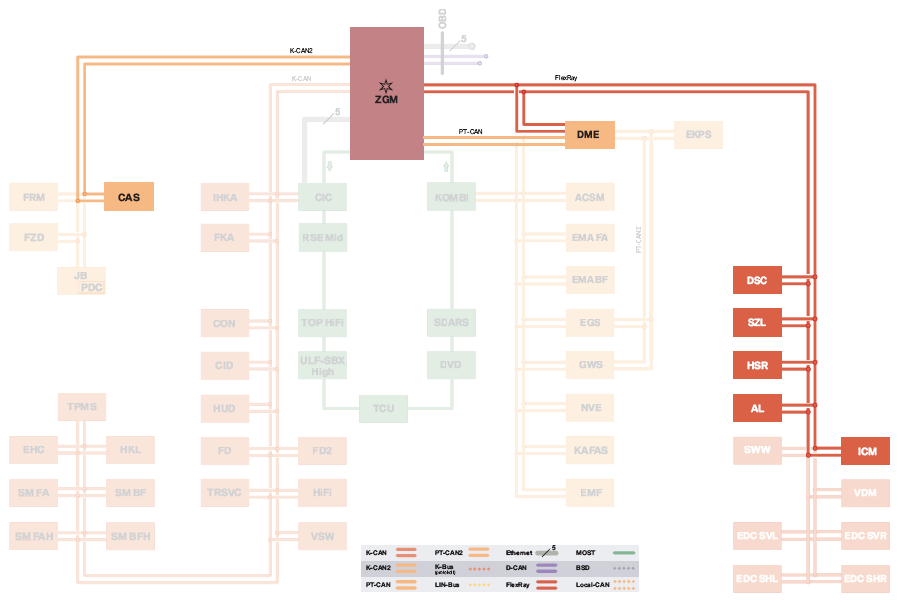

Fig 1: Bus Diagram For Lateral Dynamics Systems
G06924990Courtesy of BMW OF NORTH AMERICA, INC.
INDEX REFERENCE CHART

Index Explanation
CAS Car Access System
ZGM Central Gateway Module
DME Digital Motor Electronics
DSC Dynamic stability control
SZL Steering column switch cluster
HSR Rear-wheel steering control unit
AL Active Steering
ICM Integrated Chassis Management
