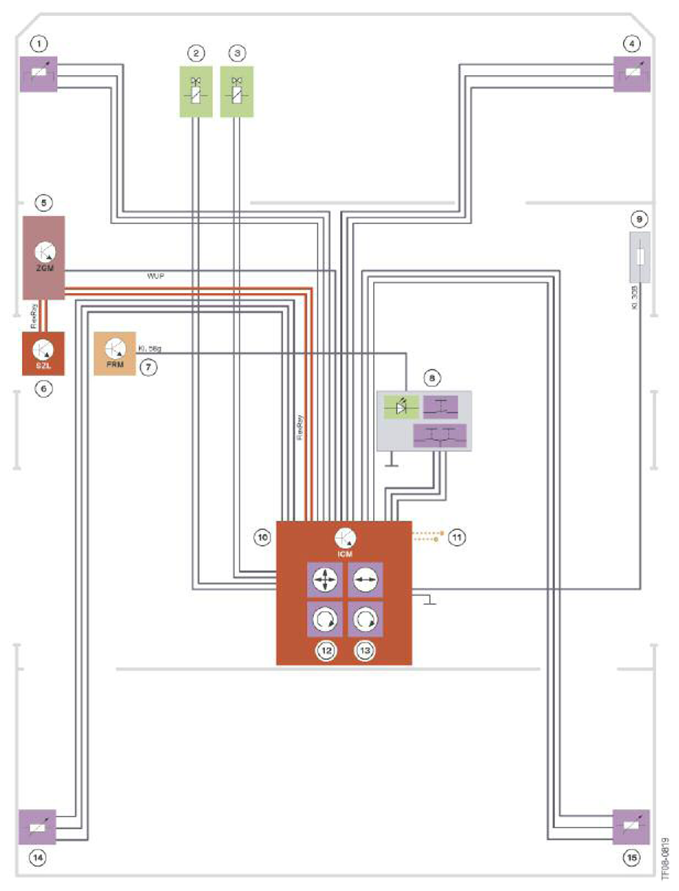

Integrated Chassis Management System Circuit Diagram
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Ride-height sensor, front left |
| 2 | Servotronic valve |
| 3 | EVV valve |
| 4 | Ride-height sensor, front right |
| 5 | Central gateway module |
| 6 | Steering column switch cluster with steering angle sensor |
| 7 | Footwell module |
| 8 | Driving dynamics switch and DTC button |
| 9 | Fuse for ICM control unit (fuse carrier at front, junction box electronics) |
| 10 | Integrated Chassis Management |
| 11 | Local CAN |
| 12 | DSC sensor in the ICM control unit (longitudinal acceleration, lateral acceleration, yaw rate) |
| 13 | Redundant DSC sensor in the ICM control unit (lateral acceleration, yaw rate) |
| 14 | Ride-height sensor, rear left |
| 15 | Ride-height sensor, rear right |
The purpose of the local CAN is to connect the ICM control unit to the radar sensors for the Active Cruise Control with Stop&Go function.
