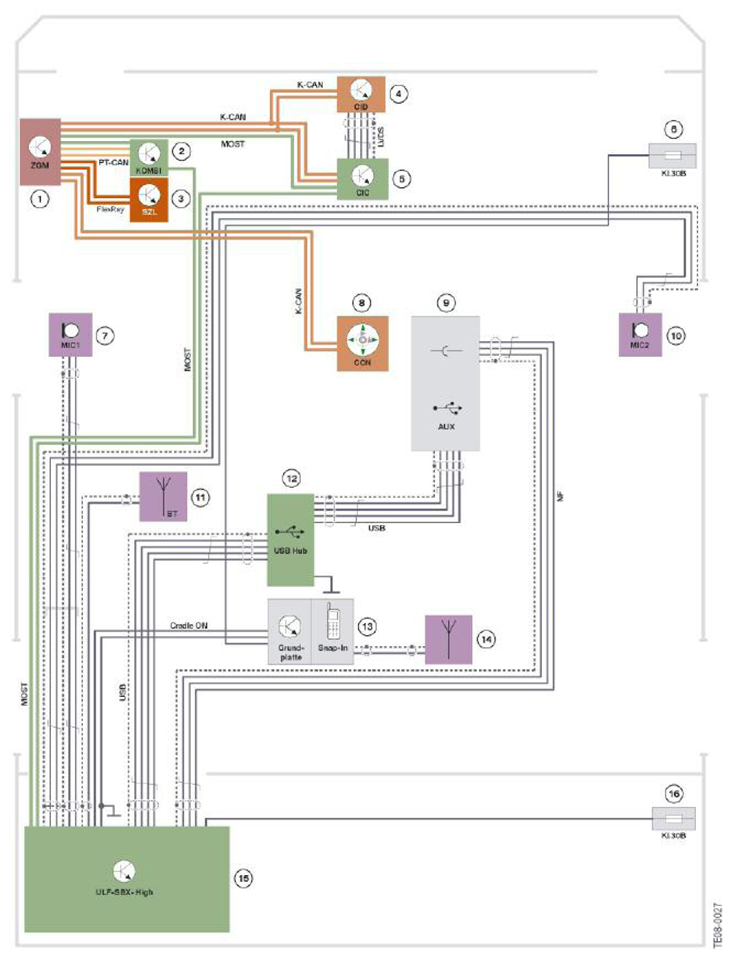

USB/audio Interface Option Circuit Diagram
INDEX REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Central gateway module |
| 2 | Instrument cluster |
| 3 | Steering column switch cluster |
| 4 | Central information display |
| 5 | Car Information Computer |
| 6 | Junction box |
| 7 | Microphone, left side of vehicle |
| 8 | Controller |
| 9 | AUX-In connection combined for USB connection + jack plug |
| 10 | Microphone, right side of vehicle |
| 11 | Bluetooth antenna |
| 12 | Antenna diversity |
| 12 | USB hub |
| 13 | Not for US |
| 14 | Roof antenna |
| 15 | ULF-SBX-High (6FL) |
| 16 | Rear power distribution box |
| K-CAN | Body CAN |
| PT-CAN | Powertrain CAN |
| FlexRay | FlexRay bus system |
| MOST | Media Orientated System Transport |
| LVDS | Low voltage differential signal |
