61 61... Overview of windscreen washer system and headlight washer system (SRA)

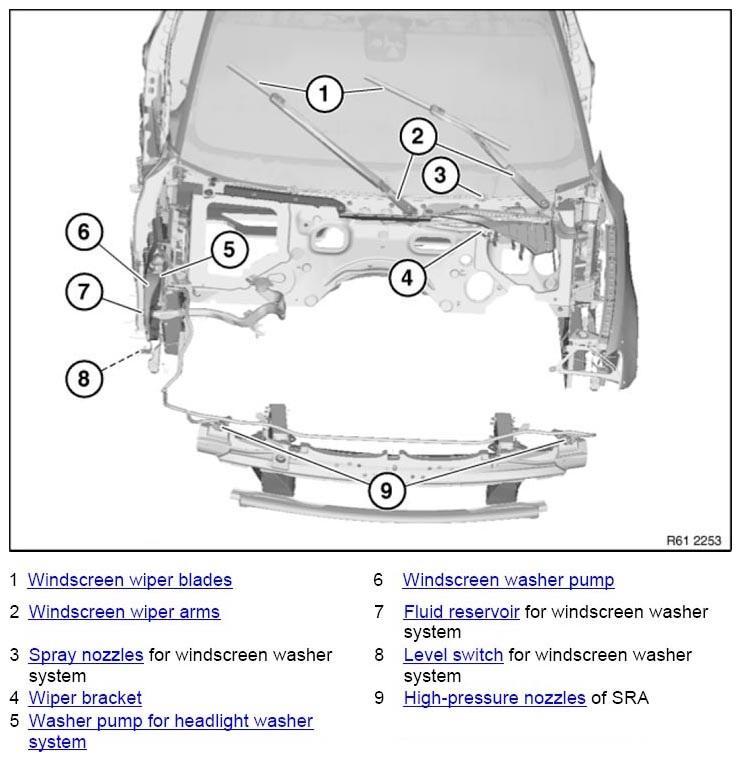

Fig 1: Overview Of Windscreen Washer System And Headlight Washer System (SRA)

G06895152

Courtesy of BMW OF NORTH AMERICA, INC.
