86 10... Disassembly of left and right aprons: Installation

Use Sikaflex 221 as sealing compound.

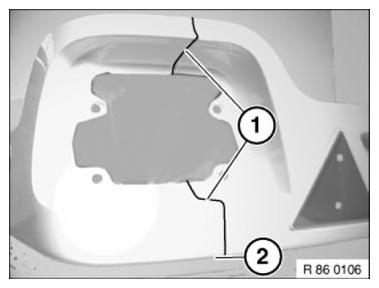

Fig 1: Identifying Sealing Compound And Rivets On Apron Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sealing compound (1).

Drill out rivets (2) on lower apron edge.

Use Sikaflex 221 as sealing compound.

Fig 1: Identifying Sealing Compound And Rivets On Lower Apron Edge

Courtesy of BMW OF NORTH AMERICA, INC.
