System overview

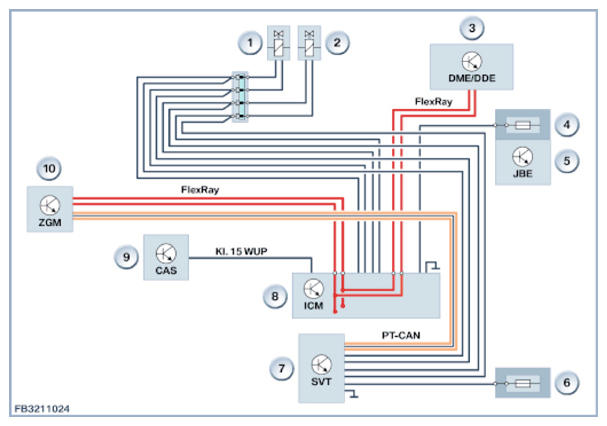

Example RR4
| Item | Explanation |
|---|---|
| 1 | Servotronic valve |
| 2 | ECO valve |
| 3 | DME (Digital Engine Electronics) or DDE (Digital Diesel Electronics) |
| 4 | Power distribution box at the junction box |
| 5 | Junction Box Electronics (JBE) |
| 6 | Power distribution box, right rear |
| 7 | Servotronic control unit (SVT) |
| 8 | Integrated Chassis Management (ICM), first-generation |
| 9 | Car access system (CAS) |
| 10 | Central gateway module (ZGM) |

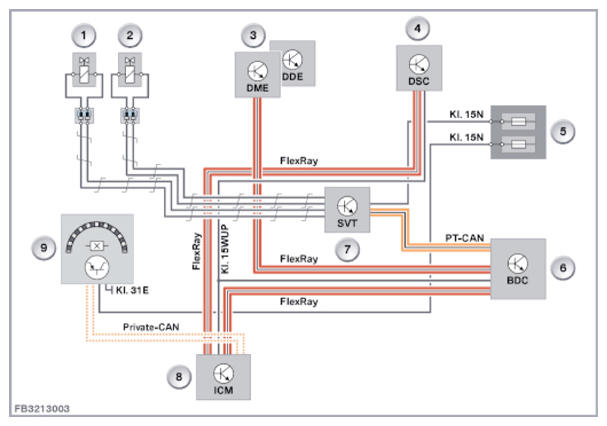

Example F15
| Item | Explanation |
|---|---|
| 1 | Servotronic valve |
| 2 | ECO valve |
| 3 | DME (Digital Engine Electronics) or DDE (Digital Diesel Electronics) |
| 4 | Dynamic stability control (DSC) |
| 5 | Front power distribution box, passenger's side |
| 6 | Body Domain Controller |
| 7 | Servotronic control unit (SVT) |
| 8 | Integrated chassis management (ICM) |
| 9 | Steering angle sensor |
