Short-range sensors on left and right: Notes
The short-range sensors are radar sensors (Short Range Radar).
Two identical short-range sensors are installed in vehicles with ACC and the Stop & Go function. Each of the short-range sensors is mounted on the front bumper bracket with a plastic bracket.

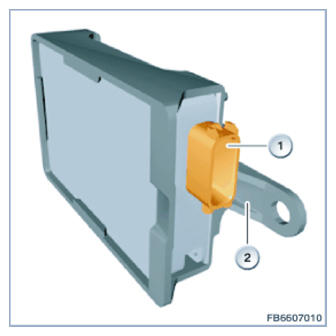

| Index | Explanation |
|---|---|
| 1 | Short-range sensor |
| 2 | Holder |
The sensor CAN (S-CAN) links the short-range sensors to the ICM Integrated Chassis Management control unit.
The short-range sensors discharge the following functions:
- Calculating position and movement data
- Short-range detection of objects up to a range of 30 meters from the front of the vehicle
The object data from the short-range sensors are used exclusively to support the ACC Stop & Go function (not for the adaptive Dynamic Brake Control).
