Check function of wastegate valve

Initial setting of wastegate linkage (1).

Observe wastegate linkage (1); it must close following activation (arrowed).

Follow diagnosis instruction.

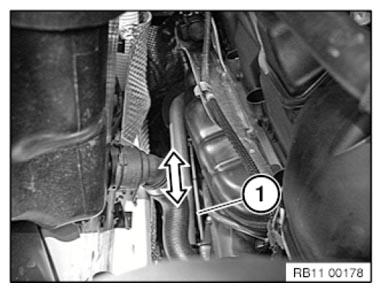

Fig 1: Checking Function Of Wastegate Valve

Courtesy of BMW OF NORTH AMERICA, INC.
