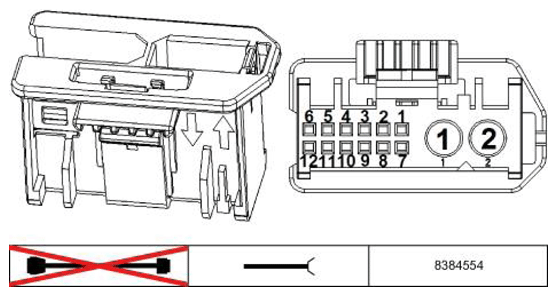

Video Module SX14454A Connector End View
Pin Assignments At Plug Connector X14454
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30G | Fuse F18 |
| 2 | A | Video signal | Car Information Computer CIC |
| 3 | -- | Not occupied | |
| 4 | -- | Not occupied | |
| 5 | -- | Not occupied | |
| 6 | -- | Not occupied | |
| 7 | M | Shielding | Car Information Computer CIC |
| 8 | A | Video signal | Car Information Computer CIC |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | -- | Not occupied | |
| 12 | M | Ground | Ground point |
