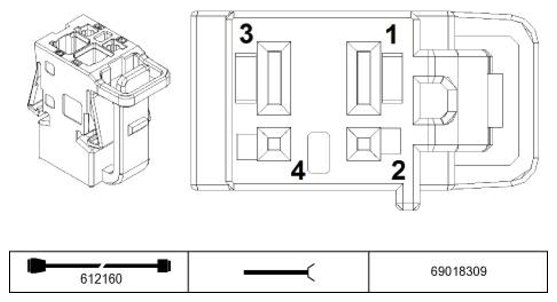

Driver's Seat Module X732 Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector X732
| Pin |
Type |
Description /Signal type |
Connection /Measuring notes |
| 1 |
M |
Ground Driver's seat backrest heating |
Driver's seat backrest heating |
| 2 |
-- |
Not occupied |
|
| 3 |
A |
Activation Driver's seat backrest heating |
Driver's seat backrest heating |
