66 31 100 Removing And Installing/Replacing Longitudinal Dynamics Module
WARNING: This page is about a different variant/trim than selected.
IMPORTANT:
Read and comply with PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks

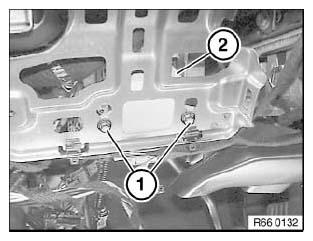

Release bolts (1) and disconnect associated plug connection.
Remove longitudinal dynamics module (2).
