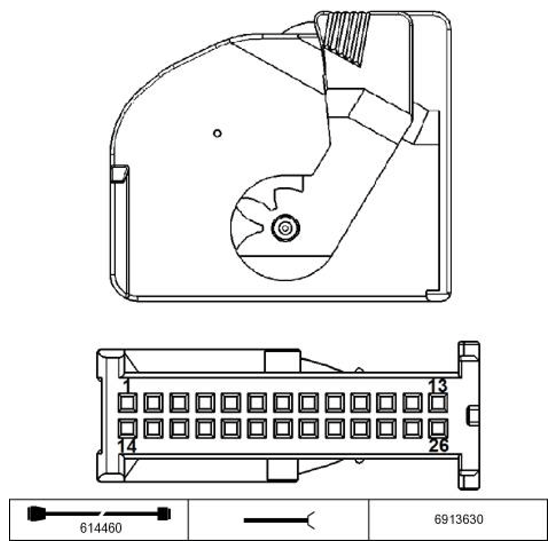

Footwell Module X14259 Connector End View
Pin Assignments At Plug Connector X14259
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Signal, front side marker light | Light switch unit |
| 2 | E | Signal, low beam switch | Light switch unit |
| 3 | E | Signal, left direction indicator light | Steering column switch cluster |
| 4 | E | Signal, right direction indicator light | Steering column switch cluster |
| 5 | M | Ground | Light switch unit |
| 6 | E | Signal, instrument lighting dimmer | Light switch unit |
| 7 | Not occupied | ||
| 8 | E | Signal, headlight beam height control | Light switch unit |
| 9 | Not occupied | ||
| 10 | Not occupied | ||
| 11 | A | Signal, switch lighting | Light switch unit |
| 12 | Not occupied | ||
| 13 | Not occupied | ||
| 14 | E | Signal, rear fog light | Light switch unit |
| 15 | E | Signal, fog light | Light switch unit |
| 16 | E | Signal, high beam/headlight flasher switch | Steering column switch cluster |
| 17 | Not occupied | ||
| 18 | E | Signal, hazard warning switch | Hazard warning switch |
| 19 | A | Signal, LED automatic high beam | Light switch unit |
| 20 | A | Signal, LED hazard flasher switch | Hazard warning switch |
| 21 | A | Signal, terminal 58G | Connector, instrument and locator lighting |
| 22 | Not occupied | ||
| 23 | A | 5 V supply | Light switch unit |
| 24 | Not occupied | ||
| 25 | Not occupied | ||
| 26 | Not occupied |
