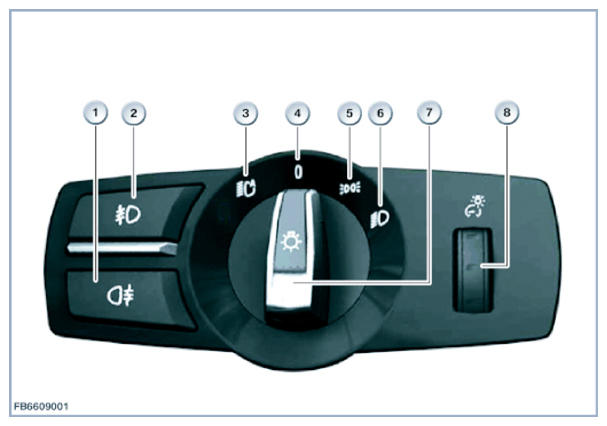

Light operating unit
The LED headlights can be switched on and off using the light operating unit. The light operating unit includes the light switch and additional components for other lighting functions.
| Item | Explanation |
|---|---|
| 1 | Rear fog light switch (not US version) |
| 2 | Front fog light switch |
| 3 | Position A for automatic driving lights control (optional equipment) |
| 4 | Position 0 for daytime driving lights |
| 5 | Position 1 for side lights |
| 6 | Position 2 for driving lights |
| 7 | Light switch |
| 8 | Dimmer for instrument lighting |
