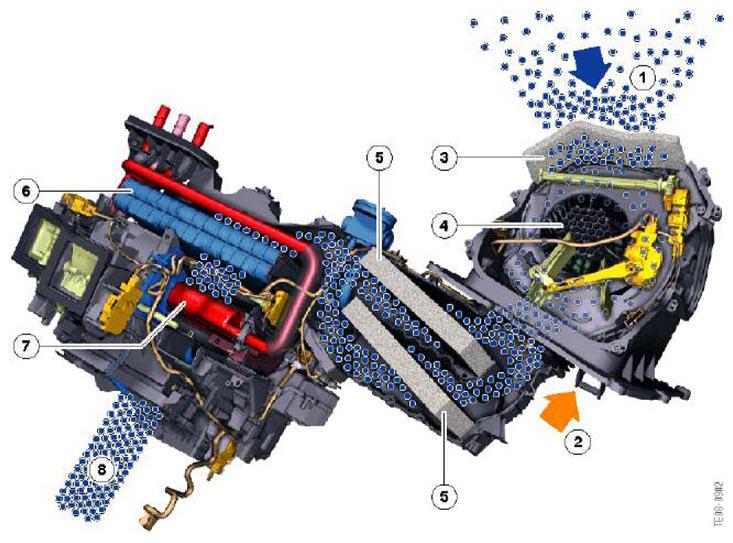

Fresh Air Intake
INDEX EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Fresh air intake via coarse filter to climate control fan |
| 2 | Recirculated-air intake |
| 3 | Coarse filter in fan-motor housing |
| 4 | Climate control system fan |
| 5 | Two combination filters (activated charcoal) |
| 6 | Evaporator |
| 7 | Heater core |
| 8 | Air outlet to air ducts and passenger compartment |
