Installation position, seat occupancy electronics

Fig 1: Identifying Seat Occupancy Mat

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Seat occupancy mat folds and creases

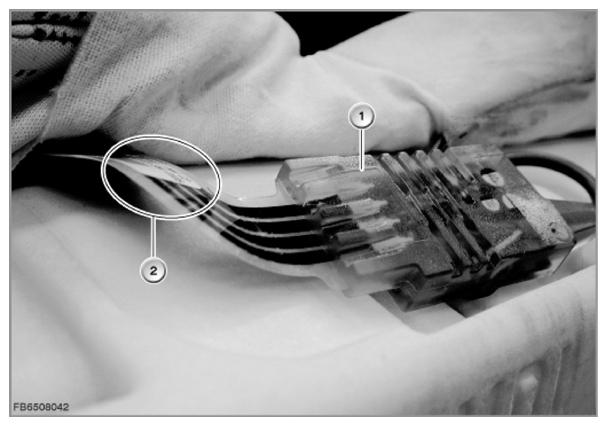

Fig 2: Identifying ELO Box Conductor Path

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	ELO box
2	Conductor paths

Fig 3: Identifying Conductor Paths On Transverse Seams Slipped

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Conductor path has slipped

Fig 4: Removing Cast Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Electronics box
2	Electronics box has slipped

Fig 5: Identifying Electronic Component Adhesive Tape Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Only fix dashed adhesive area
2	Fabric tape

Fig 6: Identifying Seat Occupancy Mat Kinked Position

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Conductor path twisted

Fig 7: Locking Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Connector not locked in place
2	Connector not correctly locked in the fixture

Fig 8: Identifying Lock Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Connector locked in place correctly
2	Connector is correctly locked in the fixture

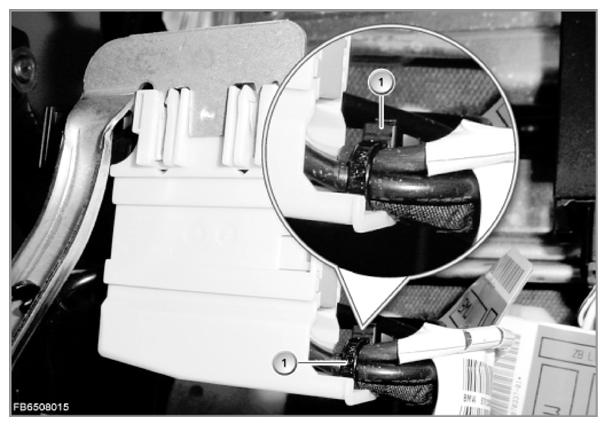

Fig 9: Identifying Central Seat Connector With Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Cable strap

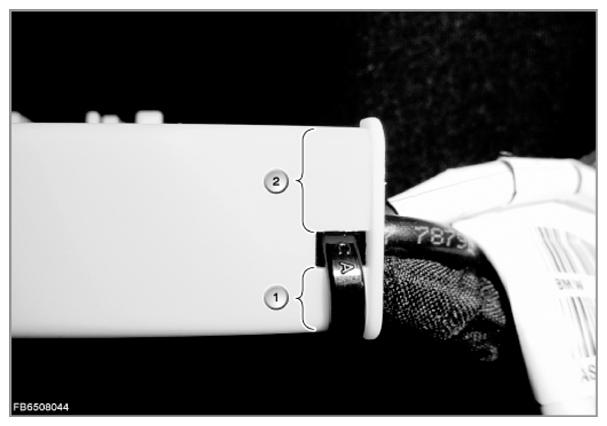

Fig 10: Identifying Cable Strap Position

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Always use the shorter distance 1
2	Do not use the longer distance (no 100% tension relief)

Fig 11: Identifying Central Seat Connector Module Locking

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Termination module 3 (SAB)
2	Lock the termination module correctly in the detent lugs of the central seat connector housing.

Fig 12: Identifying Central Seat Connector Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Latch mechanism in the bracket of the central seat connector

Fig 13: Identifying Latch Mechanism Of Central Seat Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Designation
1	Slide not locked in position
2	Slide locked in position
